Tiomos® Self-Close Hinge 160 Degree Full Overlay

Tiomos® 160° Wide Angle Hinge

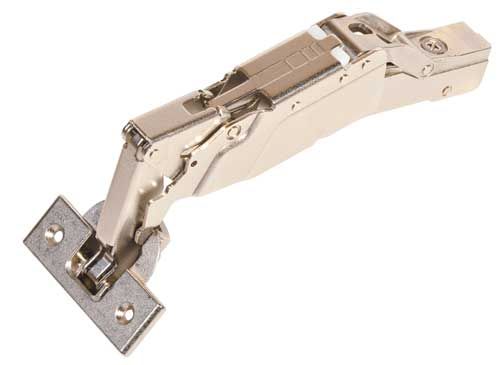

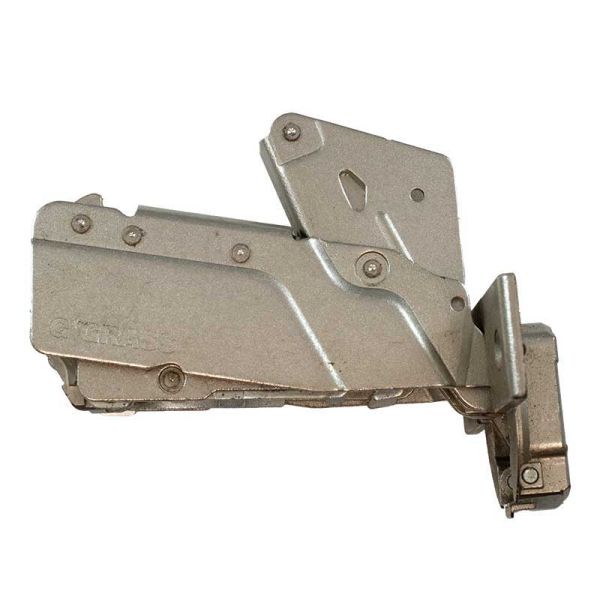

The Grass Tiomos® 160° Self-Close Wide Angle Hinge is a high-performance cabinet hinge designed for applications requiring exceptional door movement, reliable self-closing action, and precise three-dimensional adjustment. With a 160° opening angle and full overlay capability, this hinge provides excellent access to cabinet interiors while maintaining a clean, minimal appearance.

Designed for both face-frame and frameless cabinetry, the Tiomos® hinge accommodates door thicknesses from 14–24mm and provides full overlay adjustment from 24–13.5mm. Its advanced hinge geometry delivers smooth movement and zero protrusion when the door is opened to 90°, making it an excellent choice for modern cabinetry and space-conscious installations.

Key Features

• One hinge type accommodates door thicknesses from 14–24mm
• Full overlay adjustment from 24–13.5mm
• 160° wide-angle opening for excellent cabinet access
• Reliable self-close action
• Suitable for face-frame and frameless cabinets
• Convenient depth adjustment using a self-locking worm gear
• Zero hinge protrusion when the door is opened to 90°
• Designed to achieve a minimal cabinet door reveal
• Three-dimensional adjustment for precise door alignment
• Dimensional adjustment available with the appropriate base plate
• Impresso design allows tool-free hinge application

Precise Three-Dimensional Adjustment

Tiomos® provides precise adjustment in three directions, making it easy to achieve accurate cabinet door alignment. Depth adjustment of +3/–2mm is accomplished through a continuous, self-locking worm screw. Height adjustment of ±2mm is available through the hinge arm and compatible base plate, while side adjustment of ±2mm is provided through the hinge arm with an integrated overturn stop.

• Depth adjustment: +3/–2mm via self-locking worm screw
• Height adjustment: ±2mm on the base plate via hinge arm
• Side adjustment: ±2mm via hinge arm with overturn stop

Advanced Tiomos® Kinematics

The sophisticated kinematics inside the Tiomos® hinge are engineered to provide exceptionally smooth cabinet door movement. The mechanism makes doors easy to open while allowing precise alignment and minimal gaps. Its carefully developed geometry provides smooth operation throughout the opening cycle and helps cabinet manufacturers achieve a refined, high-quality finished appearance.

The Tiomos® hinge concept was developed as an evolutionary new hinge system rather than simply an update to an existing design. Its product family covers a broad range of cabinetry applications, including standard doors, wide-angle doors, diagonal corner applications, cut-corner applications, frameless cabinets, and face-frame cabinets.

Engineered for Smooth, Reliable Operation

Tiomos® combines functional engineering with a streamlined, timeless appearance. The hinge is designed to provide consistent movement while accommodating diFaceframeerent cabinet door sizes, weights, and materials. Its advanced internal mechanism remains concealed within the hinge arm, maintaining a clean appearance while delivering dependable performance.

For applications requiring soft-close functionality, the Tiomos® family is also available with an integrated Soft-close mechanism featuring three levels of closing-force adjustment. The Soft-close version provides a smooth, controlled closing action from activation through complete door closure.

Versatile Cabinet Applications

The Tiomos® system is designed to meet the demands of modern cabinet manufacturing and installation. Its wide range of hinge configurations provides solutions for standard and specialty cabinet applications. Depending on the hinge configuration, Tiomos® is available with 45mm or 42mm boring patterns for dowelled hinges and a 45mm boring pattern for screw-on hinges.

Features

• Smooth, dependable self-closing action
• 160° wide-angle opening
• Uniform hinge performance across a wide range of cabinet door sizes and materials
• Three-dimensional adjustment for precise installation
• Self-locking worm-gear depth adjustment
• Minimal reveal for a clean, professional cabinet appearance
• Zero protrusion at 90° door opening
• Tool-free Impresso application
• Suitable for face-frame and frameless cabinetry
• Broad Tiomos® hinge family supports standard and specialty applications

Tiomos® delivers the precision, versatility, and refined movement required for today's demanding cabinet applications.
