Grass 160 Deg., Face-Frame, Self-Close, 3/4 Overlay - Single Door Kit
Take the guesswork out of selecting the correct hinges and plates. This kit delivers everything you need but the screws.
In stock

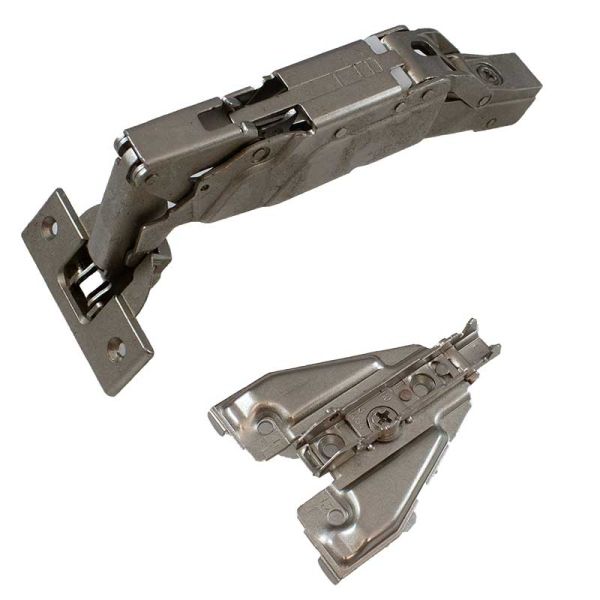

Grass 160°, Face-Frame, Self-Close, 3/4 in. Overlay - Single Door Kit
Face Frame (Western Style)
- Framed cabinets are the most common type of cabinet construction in the United States.
- They are called framed cabinets because of the 1-1/2 in. lip (frame) around the front of the cabinet box. The doors are attached to the face frame rather than directly to the cabinet box.
Tiomos®: Innovative Hinge Technology
Tiomos is an innovative hinge concept designed to deliver smooth operation, precise alignment, and exceptional performance with simple adjustments. Its advanced mechanism provides easy door opening and makes it possible to achieve exceptionally small gaps and reveals, giving cabinet designers greater flexibility.
Kinematics Built Into Tiomos Hinges
- The complex inner workings of this high-tech hinge are hidden from view, yet they deliver impressive performance when working together. Tiomos kinematics make cabinet doors extremely easy to open while providing smooth, controlled movement.
- The Tiomos hinge system offers three-dimensional adjustment for precise cabinet door alignment:
- Depth adjustment (+3/-2 mm): A continuous, self-locking adjustment powered by the worm gear built into the hinge.
- Side adjustment (±2 mm): Adjustment is made directly on the hinge arm.
- Height adjustment (±2 mm): The plate included in this kit provides height adjustment using a worm gear.
Achieved Overlay Based on Common Cup-Hole Distance
- The door overlay is determined by a combination of three factors: the cup-hole distance, the type of hinge, and the height of the mounting plate.
- This kit is based on a cup-hole distance between 4 and 6 mm (5/32 in. to 15/64 in.). If your cup-hole distance falls outside this range, please contact McFeely's Technical Support for assistance in selecting the correct hinge and plate combination.
Door Thickness
- This kit is designed for cabinet doors up to 24 mm (approximately 15/16 in.) thick. If your doors are thicker than 24 mm, please contact McFeely's Technical Support for assistance selecting the appropriate hinge components.
Footnotes
For most cabinet doors, a combination of one Soft-Close hinge and one Self-Close hinge provides an optimal closing rate. Heavier doors should use two Soft-Close hinges.
Cup-Hole Distance: The measurement from the edge of the cabinet door to the closest edge of the hinge cup hole.
| Hardware Line | Tiomos Hinges |
|---|---|
| OVERLAY | 3/4 in. |
| Closure Type | Self Close |
| HINGE OPEN ANGLE | 160 DEG |
| BRAND | Grass |
| SKU | GA-K160-FF-SF12 |
