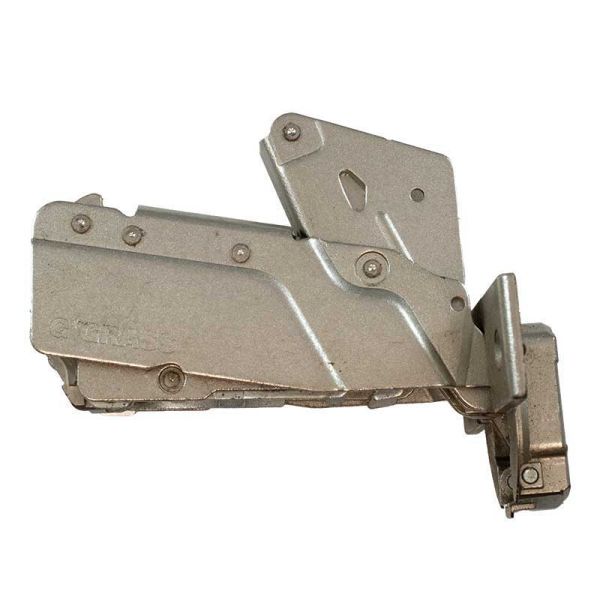

Tiomos® 160 Degree Half Overlay Soft-Close Hinge

Tiomos® 160° Wide Angle Hinge

The Tiomos® 160 Degree Half Overlay Soft-Close Hinge delivers exceptionally wide cabinet-door opening, smooth movement, and dependable soft-close performance. Designed for both face-frame and frameless cabinetry, this innovative hinge accommodates a broad range of door thicknesses while providing precise three-dimensional adjustment and a clean, concealed appearance.

• One hinge type for door thicknesses from 14–24mm
• Half overlay: 12.5–5mm
• 160° wide-angle opening for increased cabinet access
• Integrated soft-close mechanism concealed within the hinge arm
• Soft-close strength is adjustable without tools, even after the cabinet door has been installed
• Suitable for both face-frame and frameless cabinets
• Zero protrusion when the door is opened to 90°
• Minimal door reveal for a clean, refined cabinet appearance
• Three-dimensional adjustment when used with the appropriate base plate
• Depth adjustment: +3/–2mm through a continuous, self-locking worm screw
• Height adjustment: ±2mm on the base plate through the hinge arm
• Side adjustment: ±2mm through the hinge arm with overturn stop
• Impresso design allows tool-free application

Advanced Soft-Close Technology

Tiomos® incorporates a fully integrated soft-close mechanism within the hinge arm, keeping the technology concealed while maintaining a streamlined appearance. The adjustable mechanism provides three levels of closing pressure, allowing the hinge to be tuned to the specific door and application.

The soft-close adjustment can be made quickly and easily without tools, even after the doors have been installed. This makes it simple to fine-tune closing performance during cabinet installation or final adjustment.

Smooth 160° Wide-Angle Opening

The 160° wide-angle design provides exceptional access to the cabinet interior. Tiomos® advanced kinematics allow the door to open smoothly while minimizing interference and protrusion. When the door is opened to 90°, the hinge has zero protrusion, helping maximize usable cabinet space and making it an excellent choice for wide-opening cabinet applications.

Precise Three-Dimensional Adjustment

Tiomos® is engineered for accurate cabinet-door alignment and easy installation adjustments. The three-dimensional adjustment system allows installers to fine-tune the door position for consistent reveals and a professional finished appearance.

• Depth: +3/–2mm via a continuous, self-locking worm screw
• Height: ±2mm through the hinge arm and compatible base plate
• Side: ±2mm through the hinge arm

The self-locking adjustment system helps maintain the selected position while making precise corrections quick and straightforward.

Innovative Hinge Kinematics

At the heart of the Tiomos® hinge is an advanced kinematic system engineered to provide smooth, controlled cabinet-door movement. The complex mechanism remains concealed inside the hinge while working together to make doors exceptionally easy to open and close.

This refined movement allows Tiomos® to accommodate small door gaps while maintaining smooth operation. The result is a hinge system that combines precise engineering, reliable performance, and a clean contemporary design.

Designed for Versatile Cabinet Applications

Tiomos® is a comprehensive hinge concept designed to meet the needs of modern cabinet manufacturers, furniture builders, and woodworking professionals. The product family covers applications ranging from standard cabinet doors to wide-angle configurations, diagonal and pie-cut corner applications, as well as both frameless and face-frame cabinetry.

Tiomos® is available in 45mm or 42mm boring patterns for dowelled hinges and a 45mm boring pattern for screw-on hinges, depending on the hinge configuration.

Easy Installation and Adjustment

The Impresso mounting system provides tool-free application, helping streamline hinge installation. Once installed, the hinge can be adjusted to achieve the desired door position and closing action without removing the cabinet door.

Features

• 160° wide-angle cabinet-door opening
• Half overlay from 12.5–5mm
• Compatible with 14–24mm door thicknesses
• Integrated and concealed soft-close mechanism
• Three-stage adjustable soft-close performance
• Tool-free soft-close adjustment
• Three-dimensional door adjustment
• Continuous, self-locking depth adjustment
• Minimal reveal for a clean cabinet appearance
• Zero hinge protrusion at 90° door opening
• Suitable for face-frame and frameless cabinets
• Impresso tool-free mounting
• Uniform closing action regardless of door size, weight, or material

Tiomos®: Precision Engineering for Modern Cabinetry

Tiomos® is not simply a redesign of a conventional hinge system. It represents an evolutionary hinge concept engineered around smooth movement, precise adjustment, concealed soft-close technology, and versatile installation options.

With its combination of 160° wide-angle movement, integrated adjustable soft-close, three-dimensional adjustment, and advanced internal kinematics, the Tiomos® 160 Degree Half Overlay Soft-Close Hinge is an excellent solution for demanding cabinet and furniture applications where performance and appearance are equally important.
