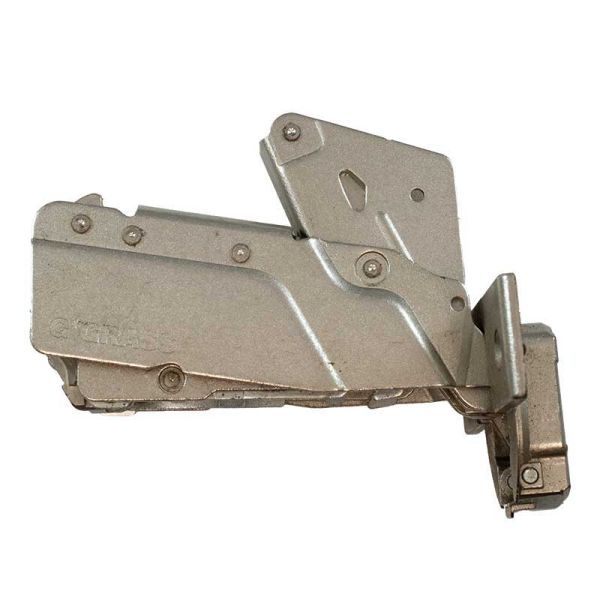

Tiomos® 160 Degree Full Overlay Soft-Close Hinge

Tiomos® 160° Wide Angle Hinge

The Grass Tiomos® 160° Full Overlay Soft-Close Hinge is a premium wide-angle cabinet hinge designed to provide exceptionally smooth door movement, reliable soft-closing performance, and precise three-dimensional adjustment. Its innovative concealed mechanism delivers a clean appearance while accommodating a wide range of cabinet door sizes, weights, and materials.

• One hinge type accommodates door thicknesses from 14–24mm
• Full overlay range from 24–13.5mm
• 160° wide-angle opening provides expanded access to cabinet interiors
• Integrated, concealed soft-close mechanism
• Soft-close strength is easily adjustable without tools, even after the door has been installed
• Suitable for both face-frame and frameless cabinets
• Zero protrusion when the door is opened to 90°
• Designed to achieve a minimal and consistent door reveal
• Three-dimensional adjustment with a suitable base plate
• Tool-free Impresso application

Adjustable Soft-Close Performance

The Tiomos® Soft-Close system features a three-level adjustable closing mechanism that is fully integrated and concealed within the hinge arm. This innovative design keeps the mechanism protected and out of sight while providing controlled, exceptionally smooth closing action.

The soft-close force can be adjusted easily without tools, even after the cabinet door has been installed. Simply turn the adjustment lever to the left or right to select the desired closing pressure. This allows the hinge to be fine-tuned for diFaceframeerent door sizes, weights, and materials.

Precise Three-Dimensional Adjustment

Tiomos® provides precise cabinet door alignment through three-dimensional adjustment. The system allows installers to make fine adjustments quickly and accurately for a professional finished appearance.

• Depth adjustment: +3/−2mm through a continuous, self-locking worm screw
• Height adjustment: ±2mm on the base plate through the hinge arm, depending on the selected base plate
• Side adjustment: ±2mm through the hinge arm with an overturn stop

This adjustment capability makes it easy to compensate for installation tolerances and achieve consistent reveals across a cabinet installation.

Innovative Tiomos® Kinematics

Tiomos® is more than an updated conventional hinge design. It is an evolutionary hinge concept engineered around advanced internal kinematics. The complex mechanism is concealed within the hinge, but its benefits are immediately noticeable during operation.

The optimized kinematics make cabinet doors exceptionally easy to open while maintaining controlled movement throughout the opening and closing cycle. The hinge is engineered to accommodate minimal reveals and precise door alignment, giving cabinet designers and manufacturers greater flexibility.

Designed for a Wide Range of Applications

The Tiomos® product family is engineered for virtually every cabinet door application, ranging from standard cabinet doors to wide-angle configurations. The system is available for both frameless and face-frame cabinetry and can accommodate specialized applications including diagonal corner and pie-cut corner doors.

Tiomos® is available in 45mm or 42mm boring patterns for dowelled hinges and a 45mm boring pattern for screw-on hinges, depending on the hinge configuration.

Easy Installation with Impresso

The Impresso design provides a convenient tool-free application method, helping simplify hinge installation while maintaining secure and accurate positioning. Combined with the available base plate options and three-dimensional adjustment, Tiomos® makes cabinet door installation and alignment eFaceframeicient for both production and custom cabinetry.

Features

• 160° wide-angle opening
• Full overlay configuration
• For 14–24mm door thicknesses
• Integrated and concealed soft-close mechanism
• Three adjustable soft-close pressure levels
• Tool-free soft-close adjustment
• Three-dimensional door adjustment
• Continuous self-locking depth adjustment
• Suitable for face-frame and frameless cabinets
• Zero protrusion at 90° opening
• Minimal door reveal
• Tool-free Impresso application
• Consistent closing action regardless of door size, weight, or material
• Engineered kinematics for smooth and easy door operation
• Suitable for a broad range of cabinet applications

Premium Hinge Performance for Modern Cabinetry

With its combination of wide-angle access, concealed soft-close technology, precise adjustment, and advanced internal kinematics, the Tiomos® 160° Full Overlay Soft-Close Hinge delivers the performance and flexibility required for today's demanding cabinetry applications. Its clean design and refined operation make it an excellent choice for manufacturers, cabinetmakers, and woodworking professionals seeking dependable performance and precise door alignment.

Tiomos® is not simply a revision of an existing hinge system—it is an evolutionary new development designed to provide smooth movement, precise adjustment, and exceptional closing performance.
