Bessey Auto-Adjust Toggle Clamp, Horizontal Base Plate - 2 3/8 in. Capacity
Self-Adjusting Horizontal Toggle Clamp
- Buy 2 for $30.48 each and save 8%

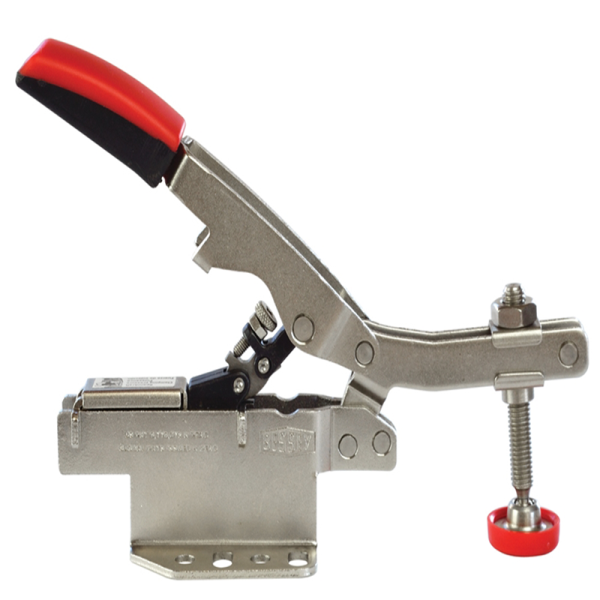

BESSEY® Horizontal Toggle Clamp with Open Arm and Horizontal Base Plate – 2-3/8-in. Clamping Capacity, Qty. 1
The BESSEY® BT-HH70 Auto-Adjust Horizontal Toggle Clamp combines quick, secure clamping with automatic adjustment for varying workpiece heights. Designed with an open arm and horizontal base plate, this toggle clamp is an excellent choice for woodworking jigs, fixtures, production tooling, assembly applications, and other situations where repeatable clamping pressure is important.
The innovative auto-adjusting mechanism automatically compensates for changes in workpiece thickness while maintaining consistent clamping force. This allows workpieces of different heights to be clamped quickly without the constant manual readjustment required with conventional toggle clamps.
Automatic Adjustment for Consistent Clamping
The BT-HH70 provides a 2-3/8-in. clamping capacity with approximately 1-3/8-in. of automatic adjustment. Its variable clamping system helps accommodate different workpiece heights while maintaining dependable pressure. The integrated clamping force adjustment screw lets you fine-tune the applied force for the requirements of your application.
wHeavy-Duty 700 lb. Holding Capacity
With a holding capacity of up to 700 lbs., the BESSEY BT-HH70 is built for demanding clamping applications. The sturdy construction and tempered metal components provide the durability needed for repeated use in woodworking shops, manufacturing environments, fixtures, and production setups.
Horizontal Base Plate for Flexible Mounting
The horizontal base plate provides a stable mounting surface and is designed for flexible installation using either imperial or metric fasteners. The BT-HH70 accepts 1/4-in. or M6 fasteners, making it easy to integrate into a variety of jigs, fixtures, workholding systems, and custom tooling.
Comfortable, Ergonomic Handle
A large, heat-resistant handle provides a comfortable grip for repeated operation. Soft handle inserts help reduce hand fatigue, making the clamp easier to use during extended production or workshop tasks.
Durable Corrosion-Resistant Construction
Nickel-plated surfaces help resist corrosion and extend the service life of the clamp. Combined with sturdy, tempered metal construction, the BT-HH70 is designed to provide reliable performance through repeated clamping cycles.
Key Features
- 2-3/8-in. clamping capacity provides generous working range for a variety of workpieces.
- 1-3/8-in. automatic adjustment compensates for variations in workpiece height.
- Up to 700 lbs. holding capacity delivers strong, dependable workholding.
- Adjustable clamping force allows the applied pressure to be customized for the application.
- Horizontal open-arm design provides convenient access and versatile positioning.
- Horizontal base plate supports secure mounting in jigs, fixtures, and production tooling.
- 1/4-in. or M6 fasteners accommodate both imperial and metric mounting requirements.
- Large ergonomic handle improves comfort during repeated operation.
- Heat-resistant soft handle inserts help reduce hand fatigue.
- Nickel-plated construction helps inhibit corrosion and extend tool life.
- Tempered metal components provide durability for demanding, repeated-use applications.
- Qty. 1 horizontal auto-adjust toggle clamp.
Ideal for Jigs, Fixtures, and Production Applications
The BESSEY BT-HH70 Auto-Adjust Horizontal Toggle Clamp is an excellent choice wherever fast, repeatable, and secure workholding is required. Its automatic adjustment, high holding capacity, adjustable clamping force, and flexible mounting make it ell-suitedwell suited for woodworking jigs, assembly fixtures, production tooling, fabrication setups, and other professional workholding applications.
Specifications: Horizontal toggle clamp; open arm; 2-3/8-in. clamping capacity; 1-3/8-in. automatic adjustment; 25-550 lb. nominal clamping force range; 700 lb. holding capacity; approximately 1.00 lb. weight; 1/4-in. or M6 fastener compatibility.
Note: Variable clamping force depends on spindle settings, pressure screw settings, force applied, and other operating conditions. Minor spindle adjustments may be required to achieve maximum clamping opening.
| Product Group | Clamps |
|---|---|
| BRAND | BESSEY |
| THROAT (CLAMP REACH) | 3 in. |
| CLAMP CAPACITY | 2-3/8 in. |
| QUANTITY | (1) Each |
| SKU | BT-HH70 |
