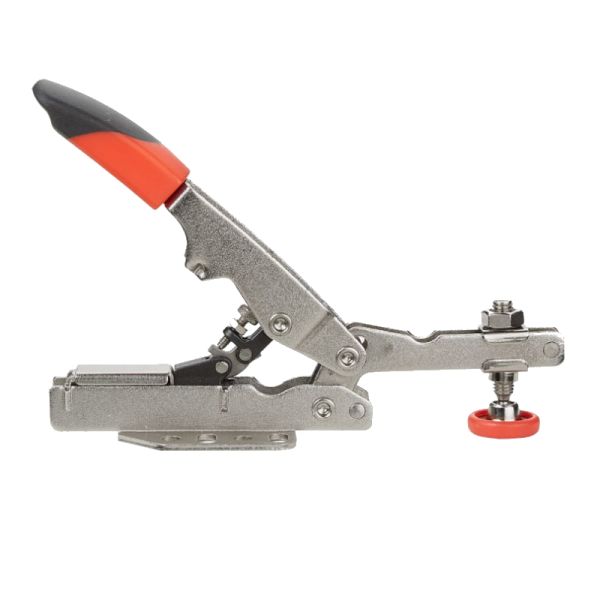

Armor Low-Profile High-Pressure Horizontal Toggle Clamp with Horizontal Base Plate

Low-Profile High-Pressure Horizontal Toggle Clamp with Horizontal Base Plate

The Low-Profile High-Pressure Horizontal Toggle Clamp is designed for fast, reliable workholding when consistent clamping pressure is essential. Its Auto-Adjust technology automatically compensates for variations in workpiece thickness, helping maintain uniform pressure without requiring repeated manual adjustments. The low-profile horizontal design provides a compact clamping solution for jigs, fixtures, woodworking applications, fabrication, and other workholding tasks.

Automatic Pressure Adjustment

The integrated clamping pressure adjustment screw provides a wide range of pressure settings, while the Auto-Adjust mechanism accommodates workpieces up to 1-9/16-in. thick. Depending on the spindle and pressure screw settings, clamping pressure can be automatically adjusted from 25 to 550 psi. This makes the clamp suitable for applications requiring repeatable pressure across workpieces with varying dimensions.

Durable, High-Capacity Construction

Built for demanding workholding applications, this toggle clamp provides a holding capacity of up to 700 lbs. Its durable construction is suited for repeated use in shop environments where dependable clamping performance and quick setup are important.

Comfortable Handle and Flexible Mounting

A large soft-grip handle provides a comfortable, secure grip for quick clamp operation. The horizontal base plate features adjustable mounting holes designed to accommodate most standard toggle clamp mounting patterns. The clamp attaches using 1/4-in. or 6 mm screws, providing flexible installation options for a variety of jigs and fixtures.

Features

• Auto-Adjust technology compensates for variations in workpiece dimensions while maintaining consistent clamping pressure.
• 1-9/16-in. clamping capacity accommodates a range of workpiece thicknesses.
• Auto-adjustable clamping pressure from 25 to 550 psi, depending on spindle and pressure screw settings.
• 700 lb. holding capacity provides dependable workholding force.
• Low-profile horizontal design is ideal for compact jigs and fixtures.
• Large soft-grip handle provides improved comfort and control.
• Adjustable mounting holes accommodate most standard toggle clamp mounting patterns.
• Integrated pressure adjustment screw provides a wide range of clamping pressures.
• Mounts with 1/4-in. or 6 mm screws.
• Designed for fast setups and repeatable clamping performance.

Ideal for Jigs, Fixtures, and Workholding

This horizontal toggle clamp is a practical choice for woodworking jigs, fabrication fixtures, assembly setups, and other applications where workpieces need to be held securely and consistently. Auto-adjust functionality helps simplify repetitive setups by compensating for variations in material thickness while maintaining dependable clamping pressure.

Clamping pressure is variable and dependent on the spindle and pressure screw setting.
