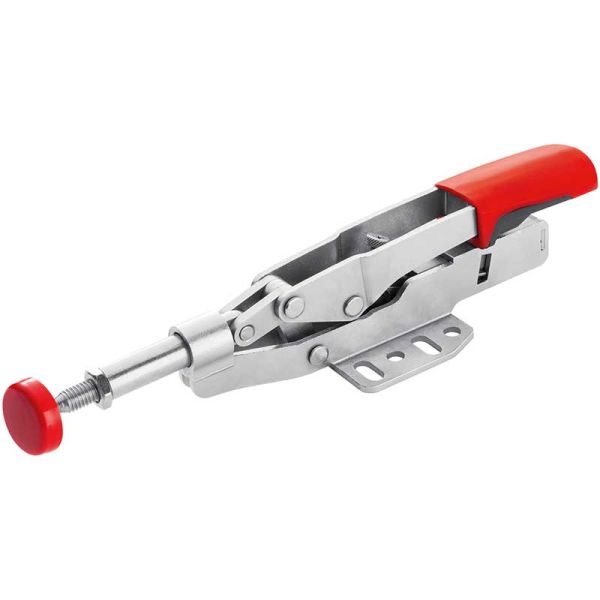

Bessey Auto-Adjust Toggle Clamp, Inline Base Plate - 5/8 in. Capacity
Self-Adjusting Toggle Clamp for Fast, Consistent Clamping
Bessey® Inline Toggle Clamp with Flanged Base Plate
The BESSEY® Auto-Adjust Inline Toggle Clamp with Flanged Base Plate provides fast, secure clamping while automatically adapting to variations in workpiece height. Its self-adjusting design maintains consistent clamping force across different material thicknesses, making it an excellent choice for woodworking, jigs, fixtures, machining, assembly, and both small- and large-scale production environments.
Designed to offer greater flexibility than traditional toggle clamps, this inline toggle clamp combines automatic adjustment, variable clamping force, and a durable construction for reliable performance. The flanged base plate provides convenient mounting options, while the ergonomic handle makes repeated clamping comfortable and efficient.
Automatic Adjustment for Different Workpiece Heights
The integrated auto-adjusting mechanism compensates for changes in workpiece thickness while maintaining the desired clamping force. This makes the clamp especially useful for production setups where multiple workpieces may vary slightly in height. Less manual adjustment means faster setup and more consistent results.
Adjustable Clamping Force
An integrated clamping force adjustment screw allows the user to control the amount of pressure applied to the workpiece. The nominal clamping force range is approximately 25 to 250 lbs., depending on spindle settings, pressure screw adjustment, and the force applied by the operator.
Inline Design with Flanged Base Plate
The inline configuration is well suited for applications where a compact clamping solution is needed along the same line as the workpiece. The flanged base plate provides a stable mounting surface and flexible installation options for custom jigs, fixtures, workholding systems, and production tooling.
Ergonomic, Durable Construction
- Self-adjusting design – Automatically adapts to variations in workpiece height while maintaining consistent clamping force.
- Adjustable clamping force – Integrated adjustment screw lets you vary the applied pressure for different applications.
- Inline toggle configuration – Compact design works well where the clamping action needs to remain in line with the workpiece.
- Flanged base plate – Provides convenient, flexible mounting for jigs, fixtures, and workholding setups.
- Flexible mounting hardware – Mounting holes accommodate imperial and metric fasteners; this model uses 3/16-in. or M5 fasteners.
- Large ergonomic handle – Heat-resistant handle with soft inserts helps improve comfort and reduce hand fatigue during repeated use.
- Corrosion-resistant finish – Nickel-plated components help inhibit corrosion and extend service life.
- Tempered metal construction – Sturdy tempered metal components provide durability for demanding shop and production environments.
- High holding capacity – Provides up to 450 lbs. of holding capacity for secure workpiece positioning.
Bessey BT-IHH15 Specifications
- Toggle type: Inline
- Clamping capacity: 3/8-in.
- Automatic adjustment range: 5/16-in.
- Nominal clamping force range: 25–250 lbs.*
- Holding capacity: 450 lbs.
- Approximate weight: 0.41 lbs.
- Fastener size: 3/16-in. or M5
- Base plate: Flanged
Ideal for Jigs, Fixtures, and Production Workholding
The Bessey® Inline Auto-Adjust Toggle Clamp is a practical solution for applications that require repeatable, secure workholding. Use it to hold components in woodworking jigs, assembly fixtures, drilling fixtures, machining setups, and production workstations. Its automatic adjustment helps streamline workflows when workpiece dimensions vary, while the adjustable clamping force provides greater control over how firmly each piece is held.
*Clamping force is variable and dependent on spindle settings, pressure screw settings, force applied, and other operating conditions. Small spindle adjustments may be required to achieve maximum clamping opening.
