5mm x 40mm Confirmat Cabinet Assembly
Designed for RTA, KD, and Panel Furniture Assembly

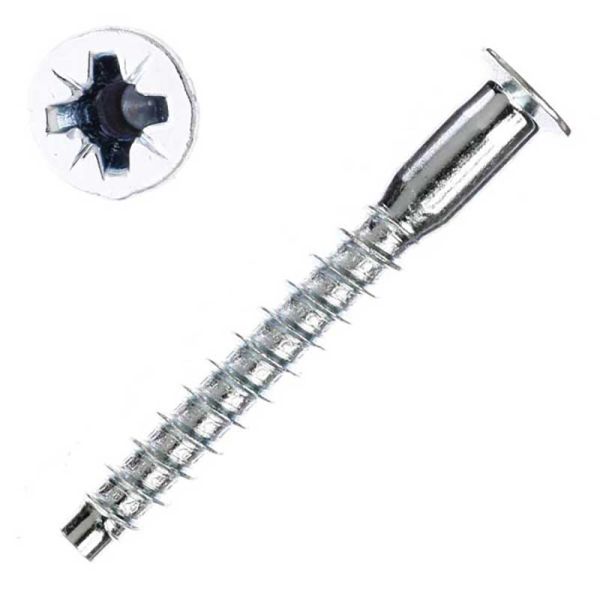

5mm x 40mm Confirmat Screws
5mm x 40mm Confirmat Screws are specially designed for assembling melamine, MDF, particle board, and other panel materials commonly used in ready-to-assemble (RTA) and knock-down (KD) furniture. These specialized furniture screws create strong, secure 90-degree joints while providing a clean, professional appearance.
The 5mm x 40mm size is designed for use with 1/2 in. thick stock. The stepped design and deep threads help draw adjoining panels tightly together for dependable cabinet, furniture, shelving, and woodworking assembly.
Features
- Designed for panel materials: Ideal for melamine, MDF, particle board, and similar furniture materials.
- Reinforcing shoulder: The shoulder beneath the screw head acts like a steel pin to help strengthen the assembled joint.
- Deep threads: Provide strong holding power and securely pull the two adjoining members together.
- #2 Pozi Drive recess: Provides positive driver engagement when used with a #2 Pozi Drive bit.
- Recessed head: The screw head seats just below the surface, allowing it to be covered with a decorative screw cap.
- Trivalent zinc finish: Our zinc and yellow zinc products use a trivalent zinc process and are RoHS compliant.
Installation
- Pre-drill the panel material using the appropriate stepped Confirmat drill bit, such as the MS-5040.
- Position the two members at a 90-degree angle and align the pre-drilled holes.
- Drive the Confirmat screw using a #2 Pozi Drive driver bit until the head is properly seated below the surface.
- Install a decorative screw cap over the recessed screw head for a clean, finished appearance.
Recommended Accessories
- #2 Pozi Drive Driver Bits: HPD-0210, HPD-0220, and HPD-0260.
- Stepped Drill Bit: MS-5040 for proper Confirmat screw installation.
- Screw Caps: White 5041-CAP for covering the recessed screw head.
Ideal Applications
These Confirmat screws are an excellent choice for cabinet assembly, furniture construction, shelving, shop fixtures, office furniture, and other woodworking projects using 1/2 in. melamine, MDF, or particle board. They provide a practical fastening solution for both professional furniture manufacturing and DIY assembly projects.
Note: Drill bits, driver bits, and screw caps are sold separately.
| SIZE (#8, #10 ...) | 5 mm |
|---|---|
| LENGTH | 40 mm |
| MATERIAL | Zinc, Clear |
| COUNTERSINK NIBS | Without Nibs |
| RECESS TYPE | Pozi |
| HEAD | Confirmat |
| POINT TYPE | Flat (Melamine) |
| BRAND | McFeely's |
| RECESS SIZE | #2 |
| Unthreaded Length | 8 mm |
| Threaded Length | 28 mm |
| Head Diameter | 5/16 in. |
| Unthreaded Shank Diameter | 3/16 in. |
| RoHS Compliant? | No |
| SKU | 5040-CSP |
| SPECS: |
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals including Zinc which is known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
