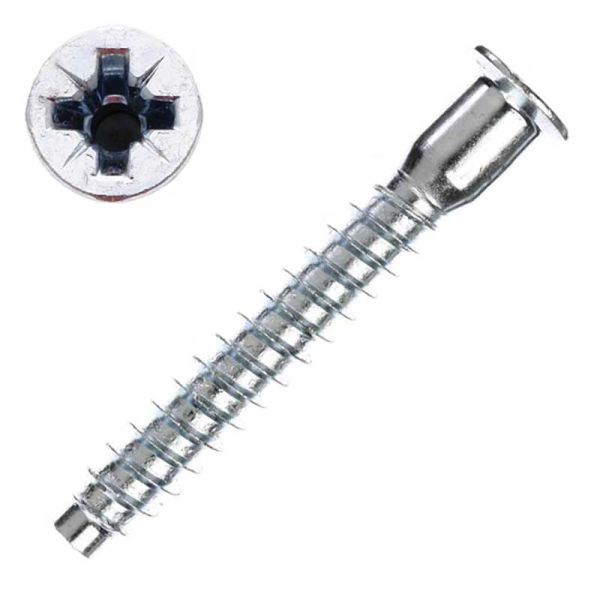

Confirmat Screws - Qty:100

7mm x 50mm Screws for Ready-To-Assemble (RTA) or Knock-Down (KD) furniture can now be assembled with ease.

Confirmat screws are designed specifically for Cabinet Assembly using Melamine, MDF, or Particle Board applications. One part is attached at a 90° angle to the adjoining part.

FEATURES

The Shoulder under the screw head is designed to act like a steel pin, strengthening the joint.
Deep threads securely pull the two members together
#3 Pozi Drive recess require a #3 Pozi Drive Driver bit
The Screw head will seat itself just below the surface and will receive a screw cap for decorative purposes.

INSTALLATION:

Pre-drill using a stepped drill bit (MS-7050)
Drive Confirmat screw - securely join the two members.
Cover screw head with screw cap.

NOTE:

Use #3 PoziDrive Bit for best engagement (HPD-0310, HPD-0320, HPD-0360)
Screw Caps (White 7051-CAP)

Drill Bits, Driver Bits, and Caps sold separately.

More Information

More Information
SIZE (#8, #10 ...)	7 mm
LENGTH	50 mm
MATERIAL	Zinc, Clear
COUNTERSINK NIBS	Without Nibs
RECESS TYPE	Pozi
HEAD	Confirmat
POINT TYPE	Flat (Melamine)
BRAND	McFeely's
RECESS SIZE	#3
Unthreaded Length	12 mm
Threaded Length	38 mm
Head Diameter	13/32 in.
Unthreaded Shank Diameter	17/64 in.
RoHS Compliant?	No
SKU	7050-CSP
SPECS:	Overall Length = 50mm (approx 1.97 in.) Head Diameter = 13/32 in. (approx 10mm) Shoulder Diameter = 17/64 in. (approx 7mm) Major Thread Diameter = 17/64 in. Minor Thread Diameter = 3/16 in. Shoulder Length = 9mm (approx 0.35 in.) Threaded Length = 38mm (approx 1.61 in.)
