7MM Confirmat screw Kit

Ready-To-Assemble (RTA) and Knock-Down (KD) furniture can now be assembled with ease.

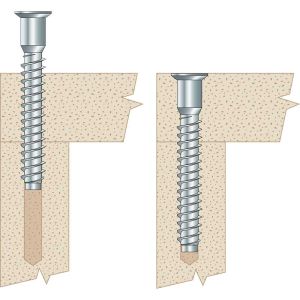

Confirmat screws are designed specifically for Melamine, MDF, or Particle Board applications. One part is attached at a 90-degree angle to the adjoining part.

The 7mm x 50mm size Confirmat Screw is the size for 3/4 in thick stock.

Kit includes everything you need to begin using Confirmat Fasteners. Confirmat Fasteners are perfect for building cabinets made of Melamine, MDF, or Particle Board Panels.

FEATURES:

Shoulder under the screw head is designed to act like a steel pin strengthening the joint.
Deep threads securely pull the two members together
#3 Pozi Drive recess require a #3 Pozi Drive Driver bit
Screw head will seat itself just below the surface and will receive a screw cap for decorative purposes.

INSTALLATION:

Pre-drill using a stepped drill bit (MS-7050)
Drive Confirmat screw to join the two members securely.

NOTE:

Use #3 PoziDrive Bit for best engagement (HPD-0310, HPD-0320, HPD-0360)

Includes:

(100) Confirmat 7mm x 50mm Connecting Screws (7050-CSP-C)
(1) 1 in. PoziDrive Bit to fit screws (HPD-0310)
(1) 2 in. PoziDrive Bit to fit screws (HPD-0320)
Connecting Screw Step Drill (MS-7050)

More Information

More Information
SIZE (#8, #10 ...)	7 mm
LENGTH	50 mm
MATERIAL	Zinc, Clear
COUNTERSINK NIBS	Without Nibs
RECESS TYPE	Pozi
HEAD	Confirmat
POINT TYPE	Flat (Melamine)
BRAND	McFeely's
RECESS SIZE	#3
QUANTITY	100-Box
Unthreaded Length	12 mm
Threaded Length	38 mm
Head Diameter	13/32 in.
Unthreaded Shank Diameter	17/64 in.
RoHS Compliant?	No
SKU	7050-CSP-A
SPECS:	SCREW SPECS: Overall Length = 50mm (approx 1.97 in.) Head Diameter = 13/32 in. (approx 10mm) Shoulder Diameter = 17/64 in. (approx 7mm) Major Thread Diameter = 17/64 in. Minor Thread Diameter = 3/16 in. Shoulder Length = 9mm (approx 0.35 in.) Threaded Length = 38mm (approx 1.61 in.) CAP SPECS: Diameter = 19/21 in. (0.6 in. or approx 15mm)
