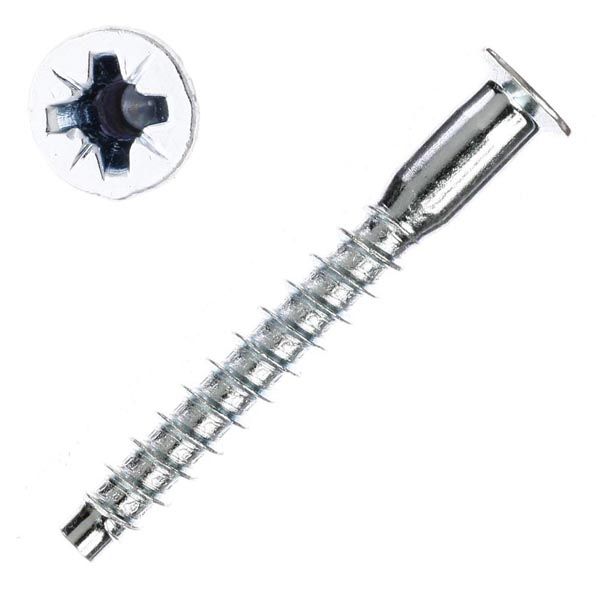

Name: 5mm x 40mm Confirmat Cabinet Assembly - Qty:1000
Brand: McFeely's
SKU: 5040-CSP-M
Price: 64.28 USD
Availability: InStock

Details

5mm x 40mm Confirmat Cabinet Assembly - Qty:1000

Ready-To-Assemble (RTA) and Knock-Down (KD) furniture can now be assembled with ease.

Confirmat screws are designed specifically for Melamine, MDF or Particle Board applications. One part is attached at a 90° angle to the adjoining part.

The 5mm x 40mm size Confirmat Screw is the size for 1/2 in thick stock.

FEATURES:

Shoulder under screw head is designed to act like a steel pin strengthening the joint.
Deep threads securely pull the two members together
#2 Pozi Drive recess requires a #2 Pozi Drive Driver bit
Screw head will seat itself just below the surface and will receive a screw cap for decorative purposes.

INSTALLATION:

Pre-drill using a stepped drill bit (MS-5040)
Drive Confirmat screw to securely join the two members.
Cover screw head with screw cap.

NOTE:

Use #2 PoziDrive Bit for best engagement (HPD-0210, HPD-0220, HPD-0260)
Screw Caps (White 5041-CAP)

Drill Bits, Driver Bits and Caps sold separately.

More Information

More Information
SIZE (#8, #10 ...)	5 mm
LENGTH	40 mm
MATERIAL	Zinc, Clear
COUNTERSINK NIBS	Without Nibs
RECESS TYPE	Pozi
HEAD	Confirmat
POINT TYPE	Flat (Melamine)
BRAND	McFeely's
RECESS SIZE	#2
QUANTITY	1000-Box
Unthreaded Length	8 mm
Threaded Length	28 mm
Head Diameter	5/16 in.
Unthreaded Shank Diameter	3/16 in.
RoHS Compliant?	No
SKU	5040-CSP-M
SPECS:	Overall Length = 40mm (approx 1.57 in.) Head Diameter = 5/16 in. Shoulder Diameter = 3/16 in. (approx 5 mm) Major Thread Diameter = 3/16 in. Minor Thread Diameter = 9/64 in. Shoulder Length = 8mm (approx 0.31 in.) Threaded Length = 28mm (approx 1.10 in.)
