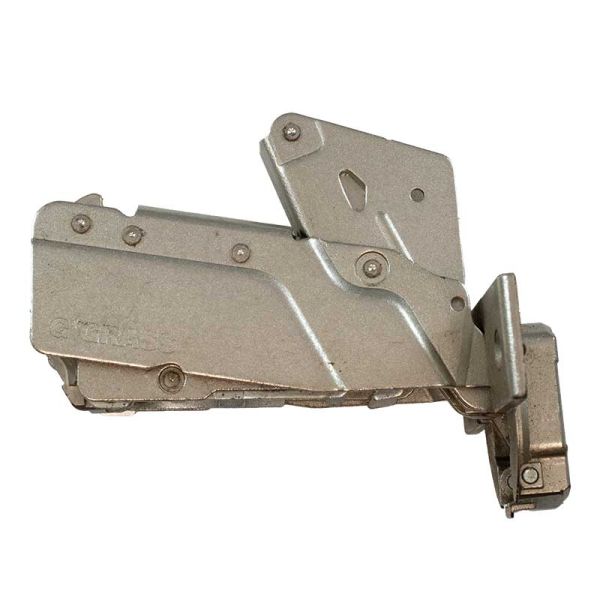

Tiomos® 160 Degree Overlay Self-Close Hinge

Tiomos® 160° Wide Angle Hinge

The Grass® Tiomos® 160° Wide Angle Self-Close Hinge is designed to provide smooth, reliable cabinet door movement while accommodating a wide range of cabinet construction and door thicknesses. Its advanced hinge design combines a wide opening angle, minimal reveal, easy adjustment, and dependable self-closing performance in one versatile hinge.

• One hinge type accommodates door thicknesses from 14–24mm
• Overlay range from 19–11.5mm
• Self-close mechanism for reliable door closing
• Designed for both face-frame and frameless cabinets
• Zero protrusion when the door is opened to 90°
• Minimal reveal for a clean, refined cabinet appearance
• Three-dimensional adjustment when used with a suitable base plate
• Depth adjustment of +3/–2mm through a continuous, self-locking worm screw
• Height adjustment of ±2mm on the base plate through the hinge arm
• Side adjustment with overturn stop through the hinge arm
• Impresso design allows tool-free application

Advanced Performance with a Timeless Design

Tiomos® is more than an updated cabinet hinge. It is a completely new hinge concept engineered to provide exceptional cabinet door movement, adjustment, and closing performance. The product family covers virtually every cabinet application, from standard doors to wide-angle doors and from frameless construction to face-frame cabinets.

This Tiomos® 160° Wide Angle Hinge features a dependable Self-close mechanism designed to provide consistent closing performance. The engineered movement makes cabinet doors easy to open while helping achieve precise alignment and minimal gaps during installation.

With its combination of advanced engineering, clean styling, and versatile installation options, Tiomos® provides an ideal solution for modern cabinet manufacturers, furniture builders, and woodworking professionals who demand precise and dependable hardware.

Designed for Versatile Cabinet Applications

Tiomos® provides smooth movement across a broad range of cabinet applications. The system is available for standard doors, wide-angle doors, diagonal corner applications, pie-cut corner applications, frameless cabinets, and face-frame cabinets. Tiomos® hinges are available in 45mm or 42mm boring patterns for dowelled hinges and a 45mm pattern for screw-on hinges.

Precise Three-Dimensional Adjustment

Fine-tuning cabinet doors is quick and precise with the Tiomos® three-dimensional adjustment system. Depth adjustment provides a continuous +3/–2mm range using a self-locking worm screw, helping installers achieve accurate door positioning without unwanted movement after adjustment.

Depending on the base plate selected, height adjustment of ±2mm can be accomplished through the hinge arm using the appropriate adjustment mechanism. Side adjustment of ±2mm is also incorporated into the hinge arm, allowing cabinet doors to be aligned accurately for consistent reveals and professional-looking installations.

Advanced Kinematics Inside Tiomos®

The sophisticated internal kinematics of the Tiomos® hinge are concealed within its streamlined design. These precision-engineered components work together to create exceptionally smooth cabinet door movement and make doors easy to open and close.

The hinge's advanced movement geometry also helps accommodate small reveals, providing cabinet designers and installers with greater flexibility when creating clean, precisely aligned cabinet fronts.

Features

• 160° wide-angle opening for increased cabinet accessibility
• Self-close operation for dependable door closing
• Suitable for face-frame and frameless cabinet construction
• Accommodates door thicknesses from 14–24mm
• Overlay adjustment from 19–11.5mm
• Zero protrusion when the door is opened 90°
• Minimal reveal for precise cabinet door alignment
• Three-dimensional adjustment with compatible base plate
• Continuous, self-locking depth adjustment
• Height and side adjustment for accurate installation
• Impresso tool-free application
• Precision-engineered internal kinematics for smooth movement
• Broad Tiomos® product range supports numerous cabinet applications

Installation & Adjustment

The Tiomos® hinge is engineered to simplify cabinet installation and final door alignment. Once installed with the appropriate base plate, the hinge provides multiple adjustment points to help compensate for variations in cabinet construction and achieve consistent door gaps.

The self-locking depth adjustment helps maintain the selected position, while height and side adjustments allow installers to fine-tune the door for a clean, uniform appearance. The Impresso design further simplifies installation by allowing tool-free application where applicable.

Ideal for Professional Cabinetry

The Tiomos® 160° Wide Angle Self-Close Hinge is an excellent choice for kitchen cabinets, furniture, built-ins, storage cabinets, and other woodworking projects requiring a wide opening angle and precise cabinet door alignment. Its versatile design and advanced adjustment capabilities make it well suited for professional cabinetmakers, furniture manufacturers, and woodworking enthusiasts.

Tiomos® – engineered for smooth movement, precise alignment, and dependable cabinet door performance.
