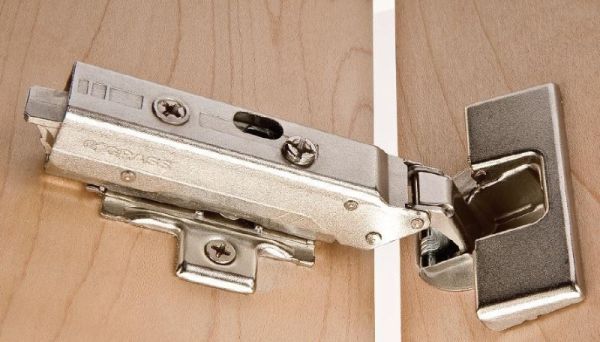

Grass 160 Deg., Face-Frame, Self-Close, 1/2 Overlay - Single Door Kit

Grass 160 Deg., Face-Frame, Self-Close, 1/2 in. Overlay - Single Door Kit

Face Frame (Western Style)

• Framed cabinets are the most common type of cabinet construction in the United States.
• They are called framed cabinets because of the 1-1/2 in. lip, or frame, around the front of the cabinet box. The doors are attached to the face frame rather than directly to the cabinet box.

Tiomos®: Innovative Hinge Technology

Tiomos is an innovative hinge concept designed to deliver smooth operation, precise alignment, and easy adjustment. Its advanced internal kinematics make cabinet doors exceptionally easy to open while allowing installers to achieve small, consistent gaps and reveals.

Kinematics Built Into Tiomos Hinges

• The complex inner workings of this high-tech hinge are hidden from view, but they work together to provide smooth, effortless door movement. The advanced kinematics make the doors extremely easy to open and help achieve precise alignment with minimal gaps and reveals, opening new possibilities for cabinet designers.
• For fine adjustment, the Tiomos hinge system offers three-dimensional adjustment:
  • Depth adjustment (+3/-2 mm): A continuous, self-locking adjustment powered by the worm gear built into the hinge.
  • Side adjustment (±2 mm): Adjustment is made directly on the hinge arm for precise door positioning.
  • Height adjustment (±2 mm): The mounting plate included in this kit provides height adjustment through an integrated worm gear.

Achieved Overlay Based on Common Cup-Hole Distance

• Door overlay is determined by a combination of three factors: the cup-hole distance, the type of hinge, and the height of the mounting plate.
• This kit is based on a cup-hole distance between 4 and 6 mm (5/32 in. to 15/64 in.). If your cup-hole distance falls outside this range, please contact McFeely's Technical Support for assistance selecting the correct hinge and plate combination.

Door Thickness

• This kit is designed for cabinet doors up to 24 mm (approximately 15/16 in.) thick. If your doors are thicker than 24 mm, please get in touch with McFeely's Technical Support for help selecting the appropriate hinge components.

Product Benefits

• Designed for face-frame cabinet applications.
• Provides a 160-degree opening angle for excellent cabinet access.
• Self-close hinge action helps bring the cabinet door smoothly toward the closed position.
• Three-dimensional adjustment allows precise control of door position.
• Worm-gear adjustments provide smooth, continuous, and secure positioning.
• Designed to accommodate cabinet doors up to 24 mm (approximately 15/16 in.) thick.
• Single-door kit simplifies hinge and mounting-plate selection for the specified application.

Footnotes

For most cabinet doors, a combination of one soft-close hinge and one self-close hinge provides an optimal closing rate. Heavier doors should use two soft-close hinges.

Cup-Hole Distance: The cup-hole distance is the measurement from the edge of the cabinet door to the closest edge of the hinge cup hole.
