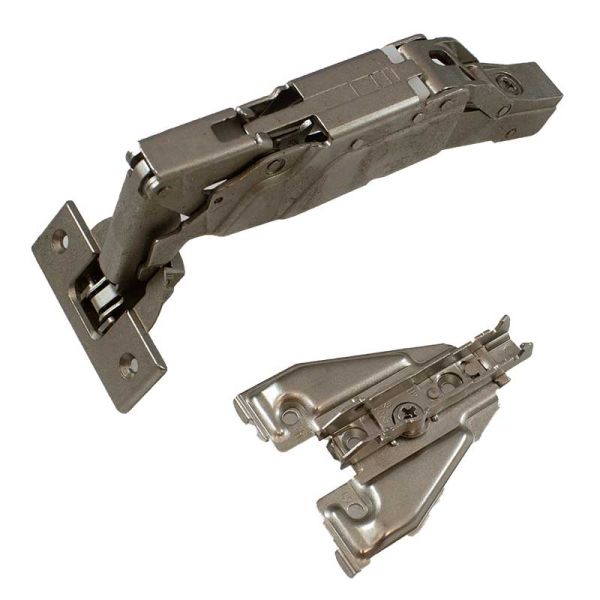

Grass 160 Deg., Face-Frame, Self-Close, 1/4 Overlay - Single Door Kit

Grass 160° Face-Frame Self-Close 1/4 in. Overlay - Single Door Kit

Face Frame (Western Style) Cabinet Application

Framed cabinets are the most common cabinet construction style in the United States. They are called framed cabinets because a 1-1/2 in. wide frame or lip surrounds the front of the cabinet box. Cabinet doors are attached to this face frame rather than directly to the cabinet box.

Tiomos®: Innovative Hinge Technology

Tiomos is an innovative hinge concept engineered to provide smooth operation, precise alignment, and exceptional adjustability. Its advanced internal kinematics make cabinet doors easy to open while allowing installers to achieve exceptionally small gaps and reveals.

Kinematics Built Into Tiomos Hinges

• The complex inner workings of this high-tech hinge are concealed within the hinge, yet they provide impressive performance during operation.
• Advanced kinematics make cabinet doors extremely easy to open and help create precise, consistent door alignment.
• The Tiomos hinge system provides three-dimensional adjustment for precise installation and fine-tuning:
  • Depth adjustment (+3/-2 mm): A continuous, self-locking worm gear built into the hinge provides precise depth adjustment.
  • Side adjustment (±2 mm): Side-to-side positioning is adjusted directly on the hinge arm.
  • Height adjustment (±2 mm): The plate included in this kit provides height adjustment using an integrated worm gear.

1/4 in. Overlay Based on Cup-Hole Distance

The door overlay is determined by a combination of three factors: the cup-hole distance, the type of hinge, and the height of the mounting plate. This kit is specifically configured to provide a 1/4 in. overlay for face-frame cabinet applications.

• Cup-hole distance: This kit is based on a cup-hole distance between 4 and 6 mm (5/32 in. to 15/64 in.).
• Important: If your cup-hole distance falls outside this range, please contact McFeely's Technical Support for assistance selecting the correct hinge and plate combination.

Door Thickness

• This kit is designed for cabinet doors up to 24 mm (approximately 15/16 in.) thick.
• If your cabinet doors are thicker than 24 mm, please contact McFeely's Technical Support for help selecting the appropriate hinge components.

Single Door Kit Includes

This single-door kit is designed to simplify hinge selection by combining the appropriate Grass Tiomos hinge and mounting plate components for a 1/4 in. overlay, face-frame cabinet application.

Self-Close Hinge Performance

The self-close Tiomos hinge provides smooth, controlled cabinet door closing without requiring a separate closing mechanism. For most cabinet doors, combining one soft-close hinge with one self-close hinge provides an optimal closing rate. Heavier doors should typically use two soft-close hinges.

Important Cup-Hole Information

Cup-hole distance is the measurement from the edge of the cabinet door to the closest edge of the 35 mm hinge cup hole. Proper cup-hole positioning is essential for achieving the intended overlay and ensuring compatibility with the hinge and mounting plate combination.

Product Highlights

• Grass Tiomos 160° hinge system
• Designed for face-frame (Western-style) cabinets
• 1/4 in. door overlay configuration
• Self-close operation
• Three-dimensional hinge adjustment
• Continuous, self-locking depth adjustment
• ±2 mm side adjustment
• ±2 mm height adjustment through the mounting plate
• Supports cabinet doors up to 24 mm (approximately 15/16 in.) thick
• Configured as a single-door hinge kit
