Grass Tiomos FL - 160 Deg., Soft Close, 1/4 Overlay - Single Door Kit

Grass Tiomos Frameless 160° Soft-Close Hinge, 1/4 in. Overlay - Single Door Kit

Frameless (Euro Style) Cabinet Application

The Grass Tiomos Frameless 160° Soft-Close Hinge Kit takes the guesswork out of selecting the correct cabinet hinge and mounting plate combination. Designed specifically for frameless, full-access European-style cabinets, this single-door kit includes the hinge components required for precise cabinet-door installation and adjustment— everything you need except screws.

Frameless (Euro Style) Cabinet Applications

• Designed for frameless, full-access European-style cabinets where doors attach directly to the cabinet box without a face frame.
• Frameless cabinet construction provides unobstructed access to the cabinet interior and creates a clean, modern appearance.
• Frameless cabinets commonly use thicker cabinet sides and allow wider doors and drawers because there is no face-frame lip.
• Full-access frameless construction can provide approximately 15% more usable storage space than traditional framed cabinetry.

Grass Tiomos 160° Hinge Technology

The Grass Tiomos hinge system combines smooth operation, precise alignment, and convenient adjustment in a sophisticated cabinet-hardware design. Its advanced internal mechanism is concealed within the hinge body, helping provide exceptionally easy door opening while giving installers the control needed to achieve consistent reveals and accurate door alignment.

Advanced Kinematics Built Into the Hinge

• The high-tech internal mechanism is concealed within the Tiomos hinge body, providing sophisticated motion control while maintaining a clean cabinet appearance.
• Advanced kinematics make cabinet doors extremely easy to open while providing controlled movement throughout the opening cycle.
• The Tiomos system provides convenient three-dimensional cabinet-door adjustment for precise installation and fine-tuning.
• Depth Adjustment: +3/-2 mm using a continuous, self-locking worm gear integrated into the hinge.
• Side Adjustment: ±2 mm, adjusted directly on the hinge arm.
• Height Adjustment: ±2 mm using the worm-gear adjustment integrated into the mounting plate included with the kit.

1/4 in. Overlay Configuration

The 1/4 in. overlay configuration is determined by the relationship between the cup-hole distance, hinge design, and mounting-plate height. This kit is specifically configured to provide the correct geometry for the specified overlay application.

• Cup-hole distance: 4 to 6 mm (5/32 in. to 15/64 in.).
• If your cup-hole distance falls outside this range, contact McFeely's Technical Support for assistance selecting the correct Grass Tiomos hinge and mounting-plate combination.

Cabinet Door Thickness

• Designed for cabinet doors up to 24 mm (approximately 15/16 in.) thick.
• For doors thicker than 24 mm, contact McFeely's Technical Support for assistance selecting the appropriate hinge components.

160° Soft-Close Cabinet Hinge

The Grass Tiomos 160° soft-close hinge provides smooth, controlled cabinet-door closing for a refined user experience. Its wide 160-degree opening angle provides excellent access to the cabinet interior, making it especially useful for frameless cabinetry where accessibility and a wide door-opening range are important.

The integrated soft-close mechanism helps control the final closing movement of the door, reducing abrupt closing and providing smooth, quiet operation when properly installed and adjusted.

Three-Dimensional Installation Adjustment

After installation, the Grass Tiomos hinge system allows installers to fine-tune cabinet-door positioning in three dimensions. Independent depth, side, and height adjustments make it easier to correct door position, establish consistent reveals, and align multiple cabinet doors across an installation.

• Depth: +3/-2 mm
• Side: ±2 mm
• Height: ±2 mm

Hinge Installation Notes

For most cabinet doors, a combination of one soft-close hinge and one self-close hinge provides an optimal closing rate. Heavier cabinet doors should use two soft-close hinges.

Cup-Hole Distance: Cup-hole distance is measured from the edge of the cabinet door to the closest edge of the hinge cup hole. Proper measurement is important when selecting the correct hinge and mounting-plate combination for the desired overlay.

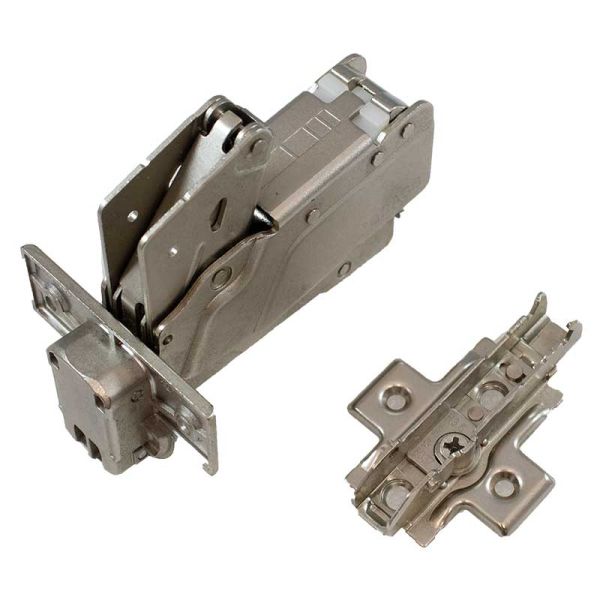

What's Included

• Grass Tiomos 160° soft-close frameless hinge
• Matching mounting plate for the 1/4 in. overlay configuration
• Single-door hinge kit components
• Screws are not included

Product Highlights

• Grass Tiomos frameless European cabinet hinge system
• 160° wide-angle opening
• Integrated soft-close operation
• 1/4 in. overlay configuration
• Designed for frameless, full-access European-style cabinets
• Single-door hinge kit
• Advanced kinematics for smooth cabinet-door movement
• Three-dimensional adjustment for precise cabinet-door alignment
• Depth adjustment: +3/-2 mm
• Side adjustment: ±2 mm
• Height adjustment: ±2 mm
• Accommodates doors up to 24 mm (15/16 in.) thick
• Designed for 4 to 6 mm (5/32 to 15/64 in.) cup-hole distance
• Includes hinge and mounting plate
• Screws not included

Ideal Applications

The Grass Tiomos Frameless 160° Soft-Close Hinge Kit is an excellent choice for European-style kitchen cabinets, bathroom vanities, storage cabinets, furniture projects, and other frameless full-access cabinetry requiring a wide opening angle, soft-close operation, and precise door adjustment.
