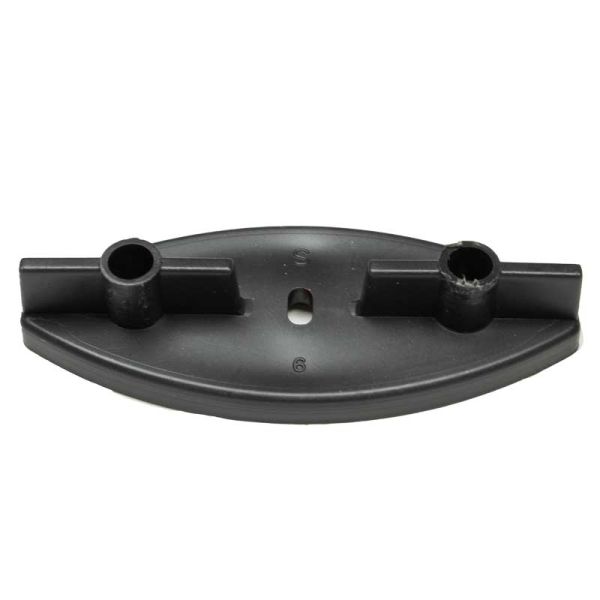

EB-TY JR Live-Center 1/4 in. spacing - QTY:175 w/o screws
Use in decking that will shrink as it acclimates. The Live Center can handle more expansion of the deck material. As the boards absorb moisture, the live center will shrink.
EB-TY Mini Hidden Deck Fastener Clips Live Center
EB-TY JR with Live-Center to Allow for Board Movement - 1/4 in. spacing - w/o Screws
Junior Height has a lower height for use with 11/16 in. and 3/4 in. decking. The Live Center is designed to allow for movement in Kiln-Dried and Other Materials that move with moisture changes.
The Live-Center feature is a hollowed-out board spacer. As wood expands across the grain with increases in relative humidity, the hollowed-out spacer in the Eb-Ty will flex, providing expansion room for the wood's movement.
DIMENSIONS:
- Height = 13/32 in.
- 'Width = 1 in.
- Length = 2-3/8 in.
- Board Spacing = 1/4 in.
- Thickness = 0.14 in.
INSTALLATION:
- Use a biscuit jointer to make a recess in boards without grooves in the edge. Drive the screw at an angle. For end boards, drive a head-coated screw through the top of the board on the edge without the Eb-Ty.
- Use with #7 x 2-1/4 in. trim head wood screws, 305 or 316 stainless steel.
- Use 305 stainless steel for most environments.
- Use 316 stainless steel for highly corrosive environments such as salt water or salt spray (within 2 miles of ocean), dockside, poolside, etc.
Screws sold separately.
Click Here& to shop for head-coated screws.
| BOARD SPACING | 1/4 in. |
|---|---|
| CLIP HEIGHT | 13/32 in. |
| MATERIAL | Polypropylene |
| BRAND | EB-TY |
| QUANTITY | LG (151-500) |
| SKU | EBLM-0175-A |
| Prop 65 |
|
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
