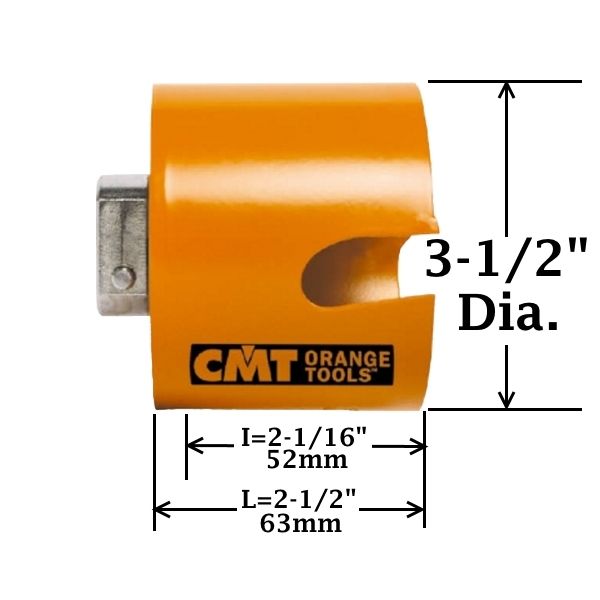

Hole Saw for Soft/Hard Wood CMT Carbide 3-1/2 Diameter x 2-1/16 Depth

CMT Carbide-Tipped Hole Saw for Soft and Hard Woods – 3-1/2-in. Diameter

The CMT Carbide-Tipped Hole Saw is designed for fast, precise hole cutting across a wide range of materials. With durable carbide-tipped tungsten teeth, this 3-1/2-in. diameter hole saw delivers long cutting life and efficient drilling performance. Its 2-1/16-in. cutting depth makes it well suited for woodworking, remodeling, installation, and general construction applications.

Designed for use in both soft and hard woods, this CMT hole saw can also cut chipboard, plywood, MDF, plastic, gypsum and plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block with a maximum hardness of 30 N/mm².

Carbide-Tipped Teeth for Fast, Long-Lasting Cutting

Carbide-tipped tungsten teeth provide a durable cutting edge designed to withstand demanding applications while maintaining fast cutting performance. The tooth design helps produce clean, accurate holes while extending the useful life of the hole saw compared with conventional cutting solutions.

Fast-Lock Attachment

The fast-lock attachment system makes changing hole saw sizes quick and convenient. Compatible hole saws can be attached to the shank without tools with a simple click, helping reduce setup time when switching between hole sizes.

Precise Drilling at Extreme Angles

Engineered for controlled drilling, the CMT hole saw provides precise cutting performance even when drilling at challenging angles. The hex shank helps provide maximum non-slip power transfer between the drill and hole saw for dependable operation.

Precision Hole Enlargement

The CMT hole saw system can also be used to enlarge an existing hole with precision. By mounting two hole saws together, the smaller saw guides the assembly through the existing opening while the larger saw cuts the new, larger diameter.

How to Enlarge an Existing Hole

1. Load the larger hole saw by sliding it onto the shank from the back until it reaches the ring stop.
2. Load the smaller hole saw from the front of the shank until it reaches the ring stop and clicks into place.
3. Insert the assembly into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the diameters of the two hole saws. If the two hole saws use different shank sizes, the stepped shank CMT-Sh350-DB1 is required.

Easy Plug Removal

Removing the cut plug is quick and convenient. Simply reverse the drill bit to help release the plug from the hole saw, minimizing downtime between cuts.

Product Features

• 3-1/2-in. hole saw diameter
• 2-1/16-in. cutting depth
• Carbide-tipped tungsten teeth for long cutting life and fast cutting
• Fast-lock attachment for tool-free hole saw changes
• Designed for precise drilling, including challenging angles
• Can be configured with two hole saws for precise hole enlargement
• Easy plug removal by reversing the drill bit
• Hex shank provides maximum non-slip power transfer
• Suitable for soft and hard woods and numerous construction materials
• Compatible shanks are sold separately

Wide Material Compatibility

This CMT carbide-tipped hole saw is suitable for cutting soft and hard woods, chipboard, plywood, MDF, plastic, gypsum/plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block up to 30 N/mm² hardness.

Note: Shanks are sold separately.
