CMT Carbide Tipped Hole Saw - 2-3/4 Diameter x 2-1/16 Depth

CMT Carbide Tipped Hole Saw - 2-3/4-in. Diameter x 2-1/16-in. Cutting Depth

The CMT Carbide Tipped Hole Saw delivers fast, clean, and reliable cutting across a wide range of materials. With a 2-3/4-in. diameter and 2-1/16-in. cutting depth, this hole saw is designed for woodworking, remodeling, installation, and general construction applications where accurate large-diameter holes are required.

Carbide-tipped tungsten teeth provide long-lasting cutting performance and faster drilling compared with conventional hole saws. The versatile design is suitable for cutting soft and hard woods, chipboard, plywood, MDF, plastic, gypsum and plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block with a maximum hardness of 30 N/mm².

FEATURES & BENEFITS

• Carbide-Tipped Tungsten Teeth: Durable carbide teeth provide long service life and fast cutting performance.
• Fast-Lock Attachment: Hole saw sizes can be attached to the compatible shank quickly and without tools.
• Fast, Precise Drilling: Designed to provide accurate hole cutting, even when drilling at extreme angles.
• Precision Hole Enlargement: Two hole saws can be mounted together to enlarge an existing hole accurately.
• Easy Plug Removal: Reverse the drill bit to help remove the cut plug quickly and effortlessly.
• Hex Shank: Provides maximum non-slip power transfer between the drill and hole saw assembly.
• 2-3/4-in. Diameter: Ideal for applications requiring a large, precise hole with a 2-1/16-in. cutting depth.

Designed for Multiple Materials

This CMT hole saw is engineered for versatility across demanding jobsite and workshop applications. Use it for drilling through wood, plywood, MDF, chipboard, plastic, plasterboard, tile, brick, and lightweight masonry materials. Its carbide-tipped construction helps maintain cutting performance when working across a variety of materials.

Enlarge Existing Holes with Precision

CMT makes it easy to enlarge an existing hole without losing alignment. By combining two compatible hole saws on the same shank, the smaller saw guides the assembly while the larger saw cuts the new diameter.

1. Load the larger hole saw: Slide the larger saw onto the shank from the back until it reaches the ring stop.
2. Load the smaller hole saw: Slide the smaller saw onto the shank from the front until it reaches the ring stop, then click it securely into place.
3. Insert into the drill: Install the assembly into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the diameters of the two hole saws.

If the two hole saws use different shank sizes, the CMT-Sh350-DB1 stepped shank is required.

Compatible Shank Required

Shanks are sold separately. Select the appropriate CMT shank for your hole saw and drilling application.

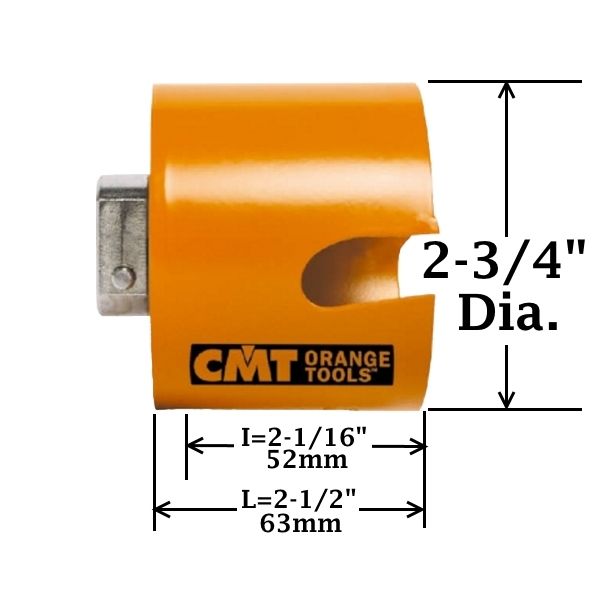

Product Specifications

• Hole Saw Diameter: 2-3/4-in.
• Cutting Depth: 2-1/16-in.
• Tooth Material: Carbide-tipped tungsten
• Shank Type: Hex shank
• Maximum Material Hardness: 30 N/mm²
• Shank: Sold separately

For dependable large-hole drilling across wood, plastics, drywall, tile, brick, and other compatible materials, the CMT 2-3/4-in. Carbide Tipped Hole Saw combines durable carbide teeth, fast cutting, secure power transfer, and convenient hole enlargement capability in one versatile cutting solution.
