CMT Carbide Tipped Hole Saw - 2-3/16 Diameter x 2-1/16 Depth

CMT Carbide Tipped Hole Saw - 2-3/16-in. Diameter x 2-1/16-in. Cutting Depth

The CMT Carbide Tipped Hole Saw delivers fast, precise cutting across a wide range of materials. Featuring durable carbide-tipped tungsten teeth, this 2-3/16-in. diameter hole saw provides long cutting life and efficient performance with a 2-1/16-in. cutting depth. It is designed for use on soft and hard woods, chipboard, plywood, MDF, plastic, gypsum and plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block with a maximum hardness of 30 N/mm².

Carbide-Tipped Teeth for Fast, Long-Lasting Cutting

The carbide-tipped tungsten teeth are engineered for durability and faster cutting compared with conventional hole saw teeth. The aggressive cutting design helps produce clean, accurate holes while providing the durability needed for demanding woodworking, construction, remodeling, and installation applications.

Fast Lock Attachment

CMT's Fast Lock attachment system allows compatible hole saw sizes to be installed quickly without tools. Simply attach the hole saw with a single click for efficient setup and convenient size changes.

Precise Drilling at Xtreme Angles

Designed for controlled drilling performance, this hole saw helps create precise openings even when drilling at challenging angles. The hex shank provides maximum non-slip power transfer between the drill and cutting system for dependable performance.

Precision Hole Enlargement

Need to enlarge an existing hole? CMT makes the process simple by allowing two hole saws to be mounted together. The smaller hole saw guides the cutting action while the larger hole saw enlarges the existing opening with precision.

How to Enlarge an Existing Hole

1. Load the larger hole saw by sliding it from the back of the shank until it reaches the ring stop.
2. Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it securely into place.
3. Insert the assembled hole saw setup into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the diameters of the two hole saws.

Stepped Shank Requirement: If the two hole saws use different shank sizes, the stepped shank (CMT-Sh350-DB1) is required.

Fast Plug Removal

Removing the cut plug is quick and convenient. Simply reverse the drill bit to help release and remove the plug from the hole saw.

Key Features

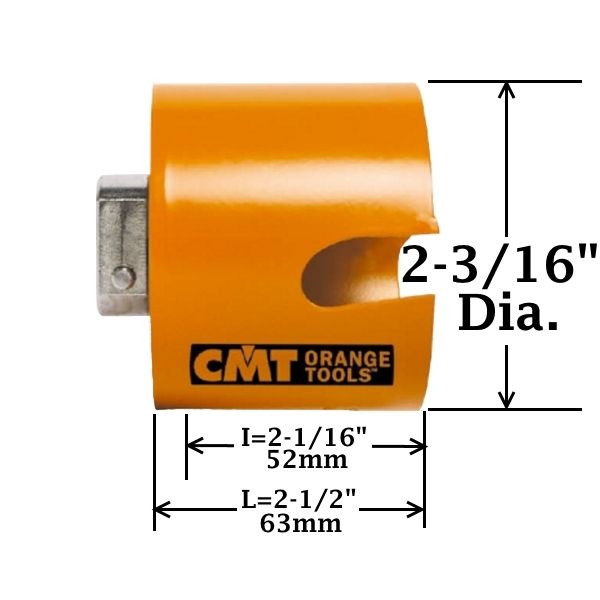

• 2-3/16-in. hole saw diameter
• 2-1/16-in. cutting depth
• Carbide-tipped tungsten teeth for long cutting life and fast cutting
• Fast Lock attachment for quick, tool-free hole saw changes
• Hex shank for maximum non-slip power transfer
• Suitable for drilling at challenging angles
• Can be configured with a second hole saw for precise hole enlargement
• Designed for wood, plastic, masonry, tile, plasterboard, and other approved materials
• Suitable for materials up to 30 N/mm² hardness

Important Product Information

Shanks are sold separately. When enlarging an existing hole, verify that the two hole saw diameters differ by at least 9 mm (23/64-in.). When using hole saws with different shank sizes, use the CMT-Sh350-DB1 stepped shank.
