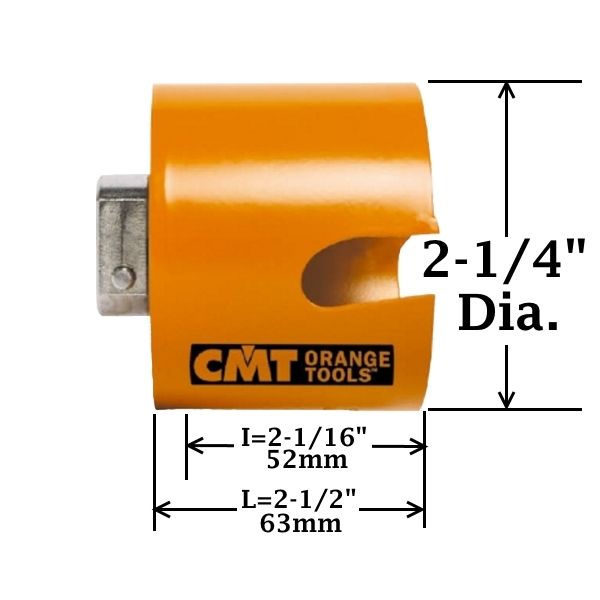

CMT Carbide Tipped Hole Saw - 2-1/4 Diameter x 2-1/16 Depth

CMT Carbide Tipped Hole Saw - 2-1/4-in. Diameter x 2-1/16-in. Cutting Depth

The CMT Carbide Tipped Hole Saw delivers fast, precise cutting and long service life across a wide range of materials. With a 2-1/4-in. diameter and 2-1/16-in. cutting depth, this hole saw is ideal for creating clean, accurate openings in softwoods, hardwoods, plywood, MDF, chipboard, plastic, gypsum board, tiles, brick, concrete blocks, and other approved materials.

Carbide-tipped tungsten teeth provide the durability and cutting performance needed for demanding applications, while the hex shank design helps maximize non-slip power transfer between the drill and hole saw. The fast-lock attachment system allows compatible hole saw sizes to be installed quickly without tools.

Designed for Multiple Materials

This CMT carbide-tipped hole saw is designed to cut:

• Soft and hard woods
• Chipboard and plywood
• MDF
• Plastic
• Gypsum and plasterboard
• Tiles
• Solid brick
• Aerated concrete block
• Light-weight aggregate block
• Breeze block
• Soft-density lime-sand stone block

For masonry applications, the material hardness should not exceed 30 N/mm².

Carbide-Tipped Tungsten Teeth

The carbide-tipped tungsten teeth are built for long life and faster cutting. The durable tooth design helps maintain effective cutting performance while producing precise holes in a variety of materials.

Fast-Lock Hole Saw Attachment

The fast-lock attachment system makes changing compatible hole saw sizes quick and convenient. Hole saws can be attached without additional tools, helping reduce setup time when moving between different cutting diameters.

Fast, Precise Drilling

Designed for accurate hole cutting, the CMT hole saw helps produce precise openings even when drilling at challenging angles. The hex shank provides reliable engagement with compatible drills for efficient power transfer and reduced slipping.

Precision Hole Enlargement

Need to enlarge an existing hole? This system allows two hole saws to be mounted together for controlled and precise hole enlargement. The larger hole saw follows the existing opening while the smaller hole saw helps guide the cutting assembly.

How to Enlarge an Existing Hole

1. Load the larger hole saw by sliding it from the back of the shank until it reaches the ring stop.
2. Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it into place.
3. Insert the assembled hole saw into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the two hole saw diameters. If the two hole saws use different shank sizes, the CMT-Sh350-DB1 stepped shank is required.

Easy Plug Removal

After drilling, removing the cut plug is simple. Reverse the drill bit to help release the plug quickly and efficiently from the hole saw.

Product Features

• Hole Saw Diameter: 2-1/4-in.
• Cutting Depth: 2-1/16-in.
• Tooth Material: Carbide-tipped tungsten
• Shank: Hex shank for maximum non-slip power transfer
• Attachment: Fast-lock, tool-free compatible attachment system
• Hole Enlargement: Supports two-hole-saw setup for enlarging existing holes
• Minimum Diameter Difference for Enlargement: 9 mm (23/64-in.)
• Maximum Masonry Hardness: 30 N/mm²

Built for Fast, Reliable Hole Cutting

Whether you're drilling through wood, plastic, drywall, tile, or approved masonry materials, the CMT 2-1/4-in. Carbide Tipped Hole Saw combines durable carbide teeth, fast attachment, precise cutting, and convenient plug removal. It is a versatile choice for professional tradespeople, woodworkers, remodelers, and serious DIY users who need dependable hole-cutting performance.

Note: Shanks are sold separately.
