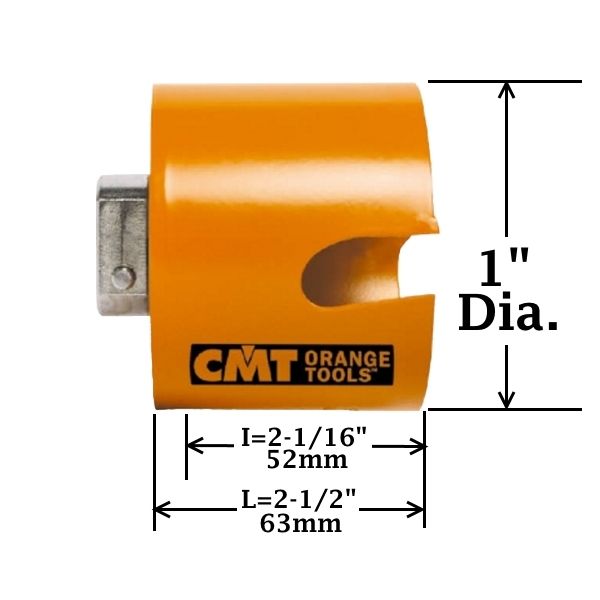

CMT Carbide Tipped Hole Saw - 1 in. Diameter x 2-1/16 Cutting Depth

CMT Carbide Tipped Hole Saw - 1-in. Diameter x 2-1/16-in. Cutting Depth

The CMT Carbide Tipped Hole Saw is designed for fast, clean, and precise hole cutting across a wide range of materials. Featuring long-lasting carbide-tipped tungsten teeth and a 2-1/16-in. cutting depth, this 1-in. diameter hole saw is ideal for woodworking, remodeling, construction, installation, and general-purpose drilling applications.

This versatile hole saw is suitable for cutting soft and hard woods, chipboard, plywood, MDF, plastic, gypsum/plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone blocks with a maximum hardness of 30 N/mm².

Carbide-Tipped Teeth for Long Life & Fast Cutting

Carbide-tipped tungsten teeth provide increased durability and efficient cutting performance. The carbide construction helps the hole saw maintain a sharp cutting edge for longer service life while allowing for faster drilling through compatible materials.

Fast Lock Attachment

The CMT XTREME FAST system allows compatible hole saws to be attached without tools. The quick-lock design makes changing hole saw sizes fast and convenient, helping reduce setup time when moving between different drilling applications.

Precise Drilling at Xtreme Angles

Designed for controlled, accurate drilling, this hole saw provides reliable performance when making holes at challenging angles. The hex shank interface delivers maximum non-slip power transfer between the drill and arbor system.

Precision Hole Enlargement

Need to enlarge an existing hole? CMT's hole saw system allows two hole saws to be used together for precise hole enlargement. This setup provides a controlled way to expand an existing opening without relying on improvised drilling methods.

How to Enlarge an Existing Hole

1. Load the larger hole saw by sliding the saw from the back of the shank to the ring stop.
2. Load the smaller hole saw from the front of the shank to the ring stop and click it into place.
3. Insert the assembly into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of at least 9 mm (23/64-in.) between the two hole saw diameters.

Different Shank Sizes: If the two hole saws have different shank sizes, the stepped shank (CMT-Sh350-DB1) is required.

Fast Plug Removal

Removing the cut plug is quick and convenient. Reverse the drill bit to help release the plug from the hole saw.

Product Features

• 1-in. hole saw diameter
• 2-1/16-in. cutting depth
• Carbide-tipped tungsten teeth for long life and fast cutting
• Fast Lock attachment allows tool-free hole saw changes
• Designed for precise drilling, including Xtreme angle applications
• Can be used with two hole saws for precision hole enlargement
• Easy plug removal by reversing the drill bit
• Hex shank provides maximum non-slip power transfer
• Suitable for soft and hard woods, chipboard, plywood, MDF, plastic, gypsum/plasterboard, tiles, and selected masonry materials
• For soft-density lime-sand stone blocks and masonry materials up to 30 N/mm² hardness

Note: Shanks are sold separately.
