CMT Carbide Tipped Hole Saw - 1-1/8 Diameter x 2-1/16 Depth
Carbide-Tipped Hole Saw for Wood, Plastic, Masonry, and More
CMT Carbide Tipped Hole Saw - 1-1/8-in. Diameter x 2-1/16-in. Cutting Depth
The CMT 1-1/8-in. Carbide Tipped Hole Saw delivers fast, precise cutting and long service life across a wide range of materials. Featuring durable carbide-tipped tungsten teeth and a fast-lock attachment system, this hole saw is designed for efficient drilling without requiring tools to change compatible hole saw sizes.
With a 2-1/16-in. cutting depth, this CMT hole saw is suitable for drilling clean, accurate holes in soft and hard woods, chipboard, plywood, MDF, plastic, gypsum and plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone with a maximum hardness of 30 N/mm2.
Key Features
- Carbide-Tipped Tungsten Teeth: Durable cutting teeth provide long life and fast cutting performance.
- Fast-Lock Attachment: Compatible hole saw sizes can be attached quickly without tools using a convenient one-click connection.
- Fast, Precise Drilling: Designed for accurate hole cutting, including drilling at extreme angles.
- Hole Enlargement Capability: Two hole saws can be mounted together to enlarge an existing hole precisely.
- Easy Plug Removal: Reverse the drill to help remove the cut plug quickly and efficiently.
- Hex Shank Compatibility: The hex-shank design provides strong, non-slip power transfer when used with the appropriate arbor.
Designed for Versatile Material Cutting
This carbide-tipped hole saw is engineered for versatile drilling applications. Use it on a variety of woodworking, construction, remodeling, and installation materials, including wood products, plastics, tile, plasterboard, and select masonry materials.
Precise Hole Enlargement
The CMT system allows two hole saws to be mounted together for accurately enlarging an existing hole. To enlarge a hole:
- Load the larger hole saw by sliding it from the back of the shank until it reaches the ring stop.
- Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it into place.
- Insert the assembly into the drill with the larger hole saw seated against the chuck.
Important: If the two hole saws use different shank sizes, the stepped shank CMT-Sh350-DB1 is required. Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the two hole saw diameters.
Product Specifications

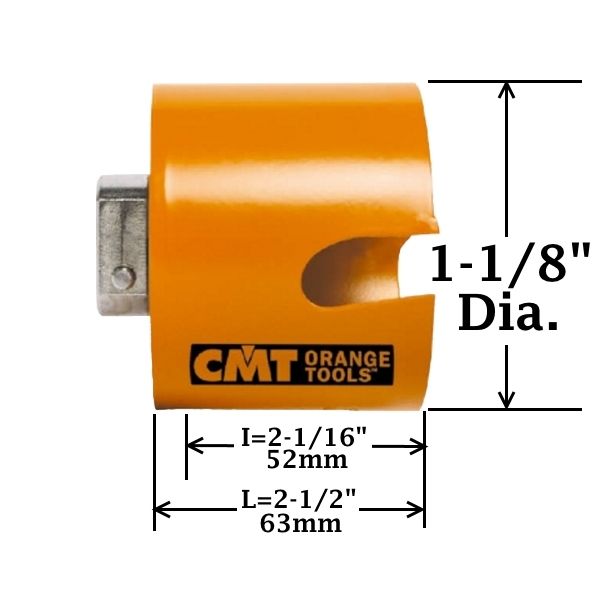

- Hole Saw Diameter: 1-1/8-in.
- Cutting Depth: 2-1/16-in.
- Tooth Material: Carbide-tipped tungsten
- Maximum Material Hardness: 30 N/mm2
- Shank: Hex shank system
Note: Shanks are sold separately.
| HOLE SIZE | 1-1/8 in. |
|---|---|
| CUTS | Brick, Cement Board, Melamine, Plaster Board, Plastics, Poreous Concrete, Wood |
| Tooth Type | Carbide |
| BRAND | CMT |
| QUANTITY | (1) Each |
| SKU | CMT-H550-0108 |
| SPECS: | SPECS:
|
| Prop 65 |
|
