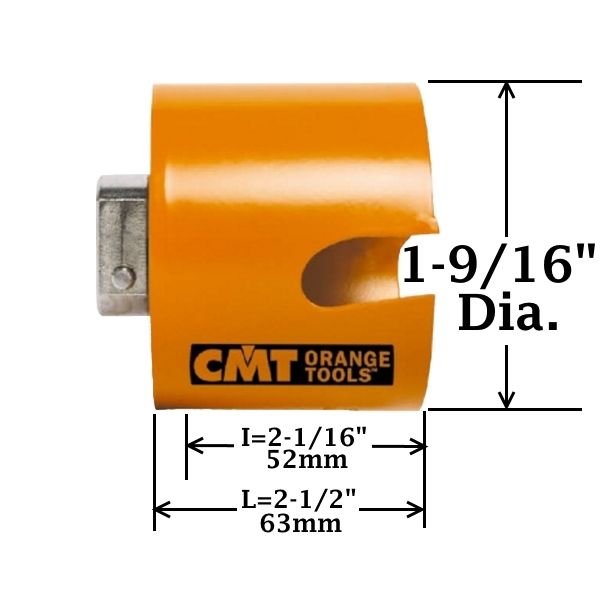

CMT Carbide Tipped Hole Saw - 1-9/16 Diameter x 2-1/16 Depth
CMT Carbide Tipped Hole Saw - 1-9/16-in. Diameter x 2-1/16-in. Cutting Depth
The CMT Carbide Tipped Hole Saw is engineered for fast, precise hole cutting across a wide range of materials. Featuring long-lasting carbide-tipped tungsten teeth, this 1-9/16-in. diameter hole saw delivers efficient cutting performance and a 2-1/16-in. cutting depth. It is suitable for soft and hard woods, chipboard, plywood, MDF, plastic, gypsum/plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block with a maximum hardness of 30 N/mm2.
Long-Lasting Carbide-Tipped Teeth
Carbide-tipped tungsten teeth provide a durable cutting edge designed for long service life and faster drilling. The aggressive tooth design helps produce clean, accurate holes while maintaining reliable performance through demanding applications.
Fast, Tool-Free Hole Saw Attachment
The CMT Fast Lock attachment allows compatible hole saw sizes to be installed quickly without additional tools. Slide the hole saw into position and lock it in place with one click for efficient setup and changeovers.
Precise Drilling at Extreme Angles
Designed for fast and controlled drilling, the CMT hole saw provides precise cutting performance even when drilling at challenging angles. The hex shank also helps maximize non-slip power transfer between the drill and hole saw.
Precise Hole Enlargement
Existing holes can be enlarged with precision by using two hole saws together. This convenient setup allows the larger hole saw to guide the cut while the smaller hole saw follows the existing opening.
How to Enlarge an Existing Hole
- Load the larger hole saw by sliding it from the back of the shank until it reaches the ring stop.
- Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it securely into place.
- Insert the assembly into the drill with the larger hole saw seated against the chuck.
Important: Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the diameters of the two hole saws. If the two hole saws have different shank sizes, the stepped shank CMT-Sh350-DB1 is required.
Fast Plug Removal
Removing the cut plug is quick and convenient. Reverse the drill bit to help release the plug from the hole saw, reducing downtime between cuts.
Product Features
- 1-9/16-in. hole saw diameter
- 2-1/16-in. cutting depth
- Carbide-tipped tungsten teeth for long life and fast cutting
- Fast Lock attachment for tool-free hole saw installation
- Designed for precise drilling, including challenging angles
- Compatible with hole enlargement applications using two hole saws
- Hex shank for maximum non-slip power transfer
- Suitable for soft and hard woods, chipboard, plywood, MDF, and plastic
- Suitable for gypsum/plasterboard, tiles, solid brick, and concrete blocks
- Suitable for soft-density lime-sand stone block up to 30 N/mm2 hardness
Note: Shanks are sold separately.
| HOLE SIZE | 1-9/16 in. |
|---|---|
| CUTS | Brick, Cement Board, Melamine, Plaster Board, Plastics, Poreous Concrete, Wood |
| Tooth Type | Carbide |
| BRAND | CMT |
| QUANTITY | (1) Each |
| SKU | CMT-H550-0136 |
| SPECS: | SPECS:
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals including nickel and cobalt, which are known to the State of California to cause cancer and lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
