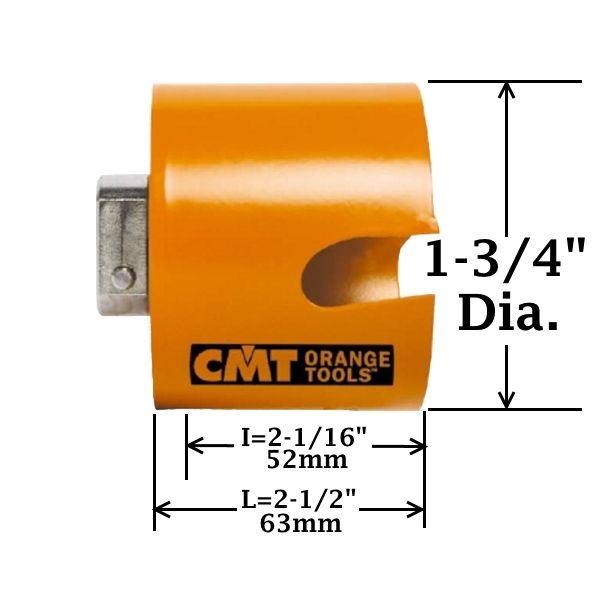

CMT Carbide Tipped Hole Saw - 1-3/4 Diameter x 2-1/16 Depth

CMT Carbide-Tipped Hole Saw - 1-3/4-in. Diameter x 2-1/16-in. Cutting Depth

The CMT 1-3/4-in. Carbide-Tipped Hole Saw is designed for fast, precise hole cutting across a wide range of materials. With durable carbide-tipped tungsten teeth, this hole saw delivers long cutting life and efficient drilling in soft and hard woods, chipboard, plywood, MDF, plastic, gypsum and plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block up to 30 N/mm² hardness.

With a 2-1/16-in. cutting depth, this CMT hole saw is well suited for woodworking, remodeling, construction, installation, and general-purpose drilling applications. The carbide-tipped cutting teeth provide fast material removal while the hex shank design helps maximize non-slip power transfer when used with a compatible shank.

Carbide-Tipped Tungsten Teeth

The carbide-tipped tungsten teeth are engineered for fast cutting and extended service life. Their durable construction makes the hole saw suitable for cutting both wood-based materials and a variety of building materials.

Fast Lock Attachment

The CMT Fast Lock system allows compatible hole saw sizes to be attached quickly without tools. Simply position the hole saw on the appropriate shank and secure it with the one-click attachment system.

Fast, Precise Drilling

Designed for efficient drilling, the hole saw provides precise cutting even when drilling at extreme angles. This makes it useful for a variety of installation and fabrication tasks where accurate hole placement is important.

Precise Hole Enlargement

Need to enlarge an existing hole? CMT allows you to combine two compatible hole saws to enlarge a hole with precision. This method helps maintain accurate alignment while cutting the larger diameter.

How to Enlarge an Existing Hole

1. Load the larger hole saw by sliding it onto the shank from the back until it reaches the ring stop.
2. Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it securely into place.
3. Insert the assembled shank into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of at least 9 mm (23/64-in.) between the diameters of the two hole saws.

If the two hole saws use different shank sizes, the CMT-Sh350-DB1 stepped shank is required.

Key Features

• 1-3/4-in. hole saw diameter for common drilling and installation applications
• 2-1/16-in. cutting depth for deep-hole applications
• Carbide-tipped tungsten teeth for long life and faster cutting
• Fast Lock attachment allows compatible hole saws to be installed without tools
• Precise drilling at extreme angles
• Hole enlargement capability using two compatible hole saws
• Easy plug removal by simply reversing the drill bit
• Hex shank design for maximum non-slip power transfer
• Suitable for a wide range of wood, plastic, masonry, and construction materials

Compatible Materials

This CMT carbide-tipped hole saw is designed for cutting:

• Softwoods and hardwoods
• Chipboard and particleboard
• Plywood
• MDF
• Plastic
• Gypsum and plasterboard
• Tiles
• Solid brick
• Aerated concrete block
• Lightweight aggregate block
• Breeze block
• Soft-density lime-sand stone block

Material hardness limitation: Maximum 30 N/mm².

Note: Shanks are sold separately.
