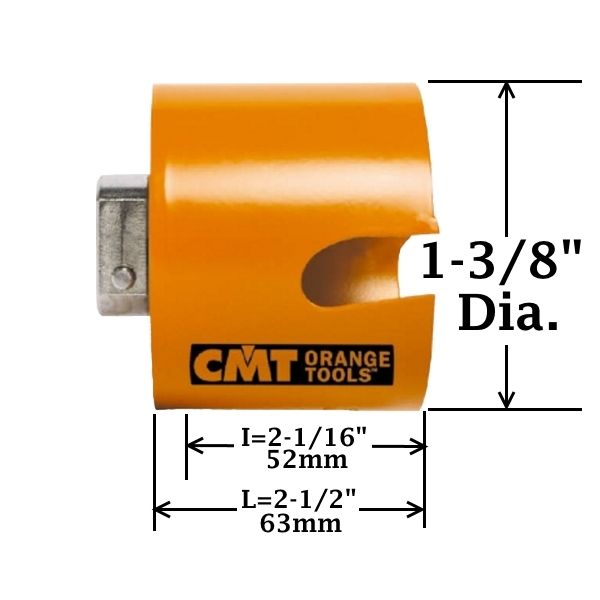

CMT Carbide Tipped Hole Saw - 1-3/8 Diameter x 2-1/16 Depth
CMT Carbide Tipped Hole Saw - 1-3/8-in. Diameter x 2-1/16-in. Cutting Depth
The CMT Carbide Tipped Hole Saw is engineered for fast, precise hole cutting across a wide range of materials. With durable carbide-tipped tungsten teeth, this 1-3/8-in. hole saw delivers long-lasting cutting performance and efficient drilling through soft and hard woods, chipboard, plywood, MDF, plastic, gypsum/plasterboard, tiles, and select masonry materials.
Versatile Hole Cutting Performance
Designed for demanding cutting applications, the CMT hole saw provides a 2-1/16-in. cutting depth and is suitable for materials with a maximum hardness of 30 N/mm2. The carbide-tipped teeth help maintain a sharp, efficient cutting edge for faster drilling and extended tool life.
Key Features
- Carbide-Tipped Tungsten Teeth: Durable cutting teeth provide long life and fast cutting performance.
- Fast Lock Attachment: Compatible hole saw sizes can be attached to the arbor without tools with a simple one-click connection.
- Fast, Precise Drilling: Designed for accurate drilling, including applications requiring precise cuts at Extreme angles.
- Precise Hole Enlargement: Two hole saws can be mounted together to enlarge an existing hole accurately.
- Fast Plug Removal: Reverse the drill to help remove the cut plug quickly and easily.
- Hex Shank Compatibility: The hex shank design provides strong, non-slip power transfer when used with the appropriate shank.
Hole Enlargement Made Easy
The CMT hole saw system allows you to enlarge existing holes with precision by mounting two hole saws together. This makes it possible to expand an existing opening without relying on improvised guides or difficult setup methods.
- Load the larger hole saw by sliding it from the back of the shank until it reaches the ring stop.
- Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it securely into place.
- Insert the assembly into the drill with the larger hole saw seated against the chuck.
Hole Enlargement Requirements
For hole enlargement applications, the two hole saws must have a minimum diameter difference of at least 9 mm (23/64-in.). If the two hole saws use different shank sizes, the stepped shank CMT-Sh350-DB1 is required.
Important Information
This listing is for the 1-3/8-in. CMT Carbide Tipped Hole Saw. Shanks are sold separately. Select the appropriate CMT shank or arbor for your drilling application.
Material Applications
This carbide-tipped hole saw is designed for use in:
- Soft and hard woods
- Chipboard
- Plywood
- MDF
- Plastic
- Gypsum and plasterboard
- Tiles
- Solid brick
- Aerated concrete block
- Light-weight aggregate block
- Breeze block
- Soft-density lime-sand stone block
For reliable hole cutting, fast drilling, and precise hole enlargement, the CMT 1-3/8-in. Carbide Tipped Hole Saw provides a versatile solution for woodworking, construction, remodeling, and general drilling applications.
| HOLE SIZE | 1-3/8 in. |
|---|---|
| CUTS | Brick, Cement Board, Melamine, Plaster Board, Plastics, Poreous Concrete, Wood |
| Tooth Type | Carbide |
| BRAND | CMT |
| QUANTITY | (1) Each |
| SKU | CMT-H550-0124 |
| SPECS: | SPECS:
|
