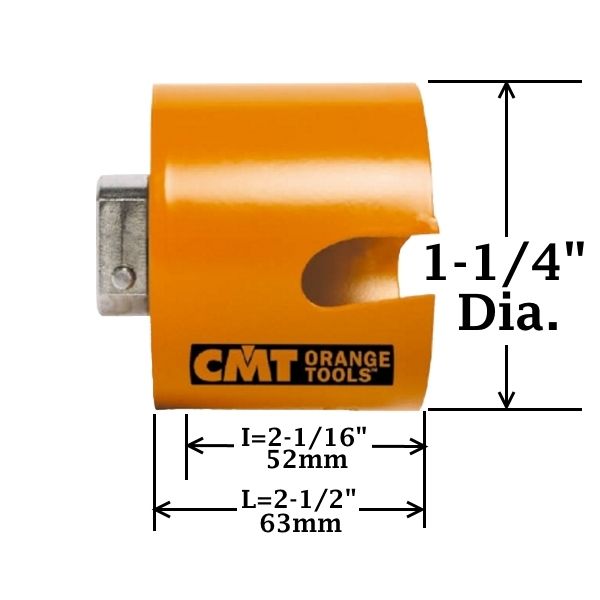

CMT Carbide Tipped Hole Saw - 1-1/4 Diameter x 2-1/16 Depth
CMT Carbide Tipped Hole Saw - 1-1/4-in. Diameter x 2-1/16-in. Cutting Depth
The CMT Carbide Tipped Hole Saw delivers fast, precise hole cutting across a wide range of building and woodworking materials. With a 1-1/4-in. diameter and 2-1/16-in. cutting depth, this hole saw features durable carbide-tipped tungsten teeth for long cutting life and efficient drilling performance.
Versatile Hole Cutting Performance
Designed for professional and general-purpose applications, this CMT hole saw can cut soft and hard woods, chipboard, plywood, MDF, plastic, gypsum and plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block with a maximum hardness of 30 N/mm2.
Carbide-Tipped Teeth for Fast Cutting
The carbide-tipped tungsten teeth provide excellent durability and cutting performance. The tooth design helps the hole saw cut efficiently through demanding materials while providing a long service life compared with conventional hole saw designs.
Fast Lock Attachment System
CMT's Fast Lock system makes changing hole saw sizes quick and convenient. Compatible hole saws can be attached to the appropriate arbor without tools using a simple one-click connection, helping reduce setup time when moving between hole sizes.
Precise Drilling at Extreme Angles
The CMT carbide-tipped hole saw is designed for fast and accurate drilling, including applications requiring precise cuts at challenging angles. Its hex shank provides a secure connection and helps deliver maximum non-slip power transfer from the drill.
Precision Hole Enlargement
Need to enlarge an existing hole? CMT's hole saw system allows you to combine two hole saws for precise hole enlargement. Mount the larger hole saw and smaller hole saw together according to the recommended procedure, then drill using the larger hole saw as the cutting guide.
How to Enlarge an Existing Hole
- Load the larger hole saw by sliding it from the back of the shank to the ring stop.
- Load the smaller hole saw from the front of the shank to the ring stop and click it securely into place.
- Insert the assembly into the drill with the larger hole saw seated against the chuck.
Important: If the two hole saws use different shank sizes, the stepped shank CMT-Sh350-DB1 is required. Hole enlargement requires a minimum difference of 9 mm (23/64-in.) between the diameters of the two hole saws.
Fast Plug Removal
Removing the cut plug is quick and convenient. Reverse the drill bit to help release the plug from the hole saw, minimizing downtime between cuts.
Product Features
- 1-1/4-in. hole saw diameter
- 2-1/16-in. cutting depth
- Carbide-tipped tungsten teeth for long cutting life and fast cutting
- Fast Lock attachment system for quick, tool-free hole saw changes
- Designed for precise drilling, including angled applications
- Can be used with two hole saws for precise hole enlargement
- Easy plug removal by reversing the drill bit
- Hex shank for maximum non-slip power transfer
- Suitable for wood, plywood, MDF, plastic, masonry materials, tile, and more
Note: Shanks are sold separately.
| HOLE SIZE | 1-1/4 in. |
|---|---|
| CUTS | Brick, Cement Board, Melamine, Plaster Board, Plastics, Poreous Concrete, Wood |
| Tooth Type | Carbide |
| BRAND | CMT |
| QUANTITY | (1) Each |
| SKU | CMT-H550-0116 |
| SPECS: | SPECS:
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals including nickel and cobalt, which are known to the State of California to cause cancer and lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
