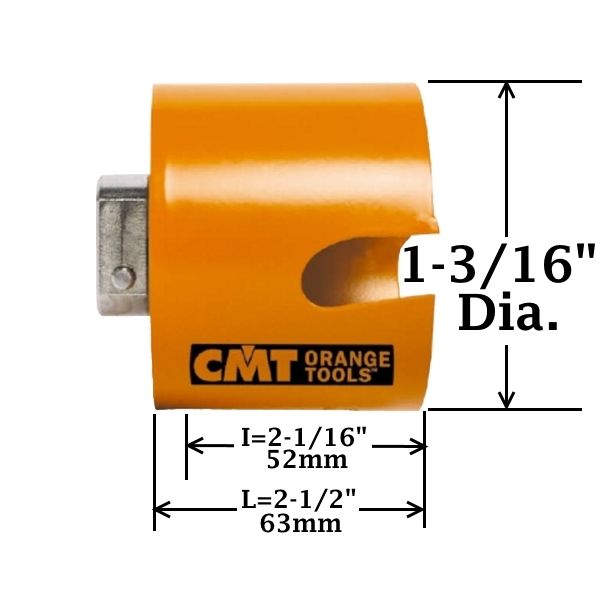

CMT Carbide Tipped Hole Saw - 1-3/16 Diameter x 2-1/16 Depth

CMT Carbide Tipped Hole Saw - 1-3/16-in. Diameter x 2-1/16-in. Cutting Depth

The CMT Carbide Tipped Hole Saw delivers fast, precise cutting across a wide range of materials. Featuring durable carbide-tipped tungsten teeth, this 1-3/16-in. diameter hole saw is designed for long cutting life and efficient drilling. With a 2-1/16-in. cutting depth, it is well suited for woodworking, remodeling, installation, and general construction applications.

Designed to cut both soft and hard woods as well as chipboard, plywood, MDF, plastic, gypsum, plasterboard, tiles, solid brick, aerated concrete block, lightweight aggregate block, breeze block, and soft-density lime-sand stone block with a maximum hardness of 30 N/mm².

Carbide-Tipped Teeth for Fast, Long-Lasting Cutting

The carbide-tipped tungsten teeth provide a durable cutting edge that helps the hole saw maintain performance through demanding applications. The tooth design combines fast cutting with long service life, making it a reliable choice for repeated hole-cutting tasks.

XTREME FAST Push & Lock Compatibility

The CMT XTREME FAST system makes changing hole saws quick and convenient. Compatible hole saw sizes can be attached without tools using the fast-lock attachment system, allowing you to switch between diameters with a simple one-click connection.

Fast, Precise Drilling

The hole saw is designed for fast drilling and precise results, including drilling at Extreme angles. A hex shank provides maximum non-slip power transfer, helping deliver efficient power from the drill to the cutting teeth.

Precise Hole Enlargement

Need to enlarge an existing hole? CMT makes the process simple by allowing two hole saws to be mounted together. This configuration guides the larger hole saw around the existing opening for controlled and precise hole enlargement.

How to Enlarge an Existing Hole

1. Load the larger hole saw by sliding it from the back of the shank until it reaches the ring stop.
2. Load the smaller hole saw from the front of the shank until it reaches the ring stop, then click it securely into place.
3. Insert the assembled shank into the drill with the larger hole saw seated against the chuck.

Important: Hole enlargement requires a minimum difference of at least 9 mm (23/64-in.) between the diameters of the two hole saws.

Different shank sizes: If the two hole saws use different shank sizes, the stepped shank (CMT-Sh350-DB1) is required.

Easy Plug Removal

After cutting, the material plug can be removed quickly by simply reversing the drill bit, helping speed up the overall drilling process.

Key Features

• 1-3/16-in. hole saw diameter
• 2-1/16-in. cutting depth
• Carbide-tipped tungsten teeth for long life and fast cutting
• Fast Lock attachment for quick, tool-free hole saw changes
• Designed for precise drilling, including Xtreme-angle applications
• Two-hole-saw configuration allows precise enlargement of existing holes
• Easy plug removal by reversing the drill bit
• Hex shank provides maximum non-slip power transfer
• Suitable for soft and hard woods, chipboard, plywood, MDF, plastic, gypsum, plasterboard, tile, and select masonry materials
• For soft-density lime-sand stone block and other listed masonry materials up to 30 N/mm² hardness

Note: Shanks are sold separately.
