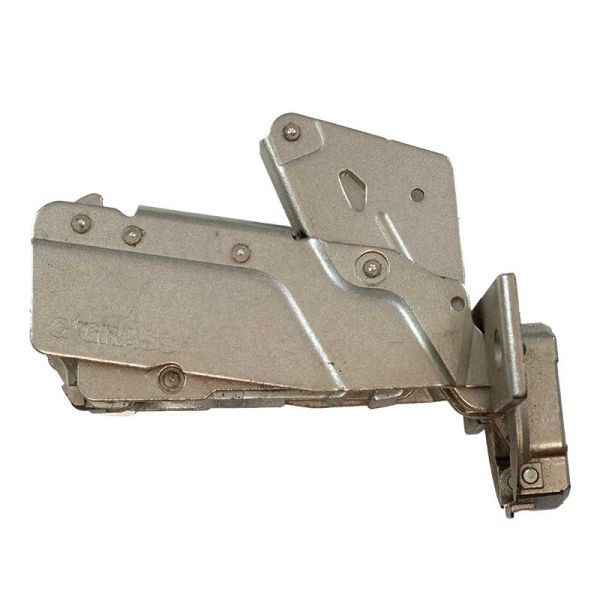

Tiomos 160 Degree Overlay Soft Close Hinge

Tiomos Wide Angle Hinge

• One hinge type for all door thicknesses 14 - 24mm
• Overlay from 19 – 11.5mm
• Soft-close
• Adjustable soft-close mechanism integrated and concealed in the hinge arm
• Soft close mechanism can be adjusted easily and without tools, even after doors are installed
• For face frame or frameless cabinets
• Zero protrusion when door is opened 90°
• Minimal reveal
• 3 Dimensional adjustment with a suitable base plate
• Depth adjustment +3/–2mm via self–locking worm screw
• Height adjustment +/–2mm on base plate via hinge arm
• Wide adjustment with overturn stop +/–2 via hinge arm
• Impresso for tool free application

Not only does Tiomos outperform any other hinge in the industry, but it also offers a timeless design as well as its own individual character.

Tiomos® is a completely new hinge concept. The product range covers virtually every application, from standard to wide-angle doors, from frameless to face-frame applications. The Tiomos offers two closing actions: the standard Self–close and the popular Soft–close. The Soft–close offers a three tier adjustable mechanism, which is fully integrated and concealed in the hinge arm. The closing process is extremely smooth from the degree that the Soft close is activated until the door is completely shut. With the superb engineering and design, the size and weight of the door will not be a factor. The cabinet doors pull open with ease and minimal gaps can be achieved with the new design of the hinge.

Tiomos the ideal solution to the ever increasing requirements of today.

Tiomos is not a revamp of an existing hinge system but an evolutionary new development.

Tiomos® provides perfect movement for essentially every application, from standard doors to wide-angle doors, from diagonal corner hinges to pie cut corner hinges, and from frameless applications to face frame applications. Tiomos is available in a 45mm or 42mm boring pattern for dowelled hinges and 45mm for screw–on hinges. The Tiomos Impresso, the ever-popular tool-free version, is available in a combined 42/45mm pattern.

Soft–close technology is concealed within the hinge arm.

Three levels of closing pressure are available with the Tiomos® adjustable Soft close mechanism, which is fully integrated and concealed in the hinge arm. The hinges arrive with the adjustment lever in the horizontal position. A turn to the left or the right will adjust the Soft–close mechanism to your individual requirements.

Perfect alignment with a twist of the hand.

For fine adjustment, the Tiomos® hinge system offers three dimensional adjustment. Depth adjustment (+3/–2mm) is based on the worm gear principle and is continuous and self–locking. Depending on the type of base plate chosen, height adjustment (± 2mm) can be achieved via a worm gear or through elongated holes (± 2.5mm). Side adjustment (± 2mm) is on the hinge arm.
