PocketMax Pocket-Hole Screw Assortment

PocketMax Pocket-Hole Screw Assortment

Pocket-Hole Joinery is a popular method for building everything from fine furniture and kitchen cabinets to window frames and deck railings, but you've got to use the right screws for the best results!

Our PocketMax® screw has solved an age-old problem in the cabinet manufacturing industry.

Before PocketMax many manufacturers used a fine thread screw for hardwoods and a coarse thread screw for soft woods. PocketMax® is a product that incorporates a thread design with an elongated cutting point that practically eliminates splitting and cracking in hardwood frames. Several large cabinet manufacturers in the United States have already switched to this new fastener because it has greatly reduced splitting and cracking of their hardwood frames while increasing holding power and speeding up their assembly times.

• 60% Less Driving Torque with No Driver Bit Slippage (Easier to drive and eliminates driver bit cam-out)
• 50% Longer Type-17 Cutting Flute Eliminates Splitting (Longer cutting point cuts better and splits less)
• 45% Reduction of Splitting, Cracking & Bursting (Less splitting = more efficient production and less waste)
• 30% Greater Holding Power & Pull-Out Values (Holds and pulls joints tighter together)

Our ProcketMax screws thread design features cutters built right into the thread design. Tiny saw blades are formed into first three to four thread revolutions that cut through wood while displacing a minimum amount of material. By displacing less material than a Type-17 point the PocketMax thread design offers greater holding power. Testing shows that it ofters 15% more holding power than a double Type-17 screw sold by our competitor while eliminating splitting. This new revolution in thread design technology was developed for, and is very popular in the furniture and woodworking industry for its ease of driving while offering optimum holding power.

McFeely's PocketMax Assortment includes our unique design which was developed in a high production woodworking shop.

FEATURES:

• Tempered for strength - these screws resist breakage
• Self-drilling screws reduce splitting wood
• Deep sharp threads designed for softwood and hardwoods
• Super-Eight Threads designed for MDF, OSB and Particle Board
• Fillister (or cheese) head seats in bottom of pocket hole without getting caught on the side walls of the hole

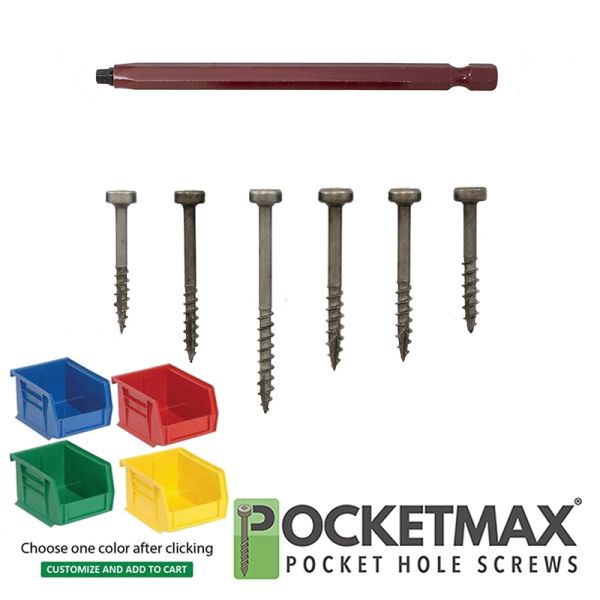

Includes:

• (100) each of:
• 0610-PTC - 7 x 1 Pocket-Hole Screws, Coarse Thread, Dry-Lube
• 0612-PTC - 7 x 1-1/4 Pocket-Hole Screws, Coarse Thread, Dry-Lube
• 0614-PTC - 7 x 1-1/2 Pocket-Hole Screws, Coarse Thread, Dry-Lube
• 0812-SPR - 8 x 1-1/4 Pocket-Hole Screws, Super-Eight Threads
• 0814-SPR - 8 x 1-1/2 Pocket-Hole Screws, Super-Eight Threads
• 1025-PMT - 10 x 2-5/8 in. PocketMax Pocket-Hole, NoCoRode Coated
• (1) HX-0265 - 2 x 6 in. Square Drive Bit

BIN FEATURES:

• Cleat on back of bin allows for wall hanging (bins hang securely on wall bracket)
• Stackable
• Made from high-density, FDA-approved polypropylene/polyethylene and will not rust or be affected by weak acids or alkalis
• Dimensions - 4-1/8 in. Wide x 3 in. High x 5-3/8 in. Deep

Bin colors available to match the color coding for a screw's driver bit size:

• Yellow = #0 Recess / Driver Bit Size
• Green = #1 Recess / Driver Bit Size
• Red = #2 Recess / Driver Bit Size
• Blue = All Others including #3 Recess / Driver Bit Size

Note: Bin color of your choice even though what is shown in picture is one color choice.

For wall hanging brackets, add SKU: BINS-BRKT to your cart.
