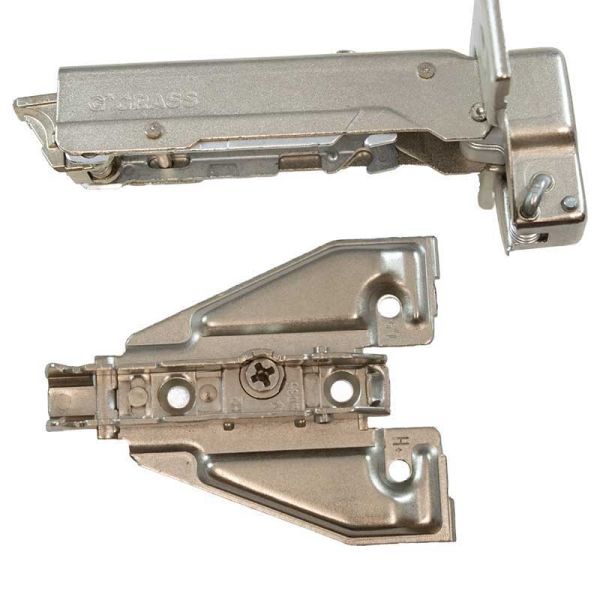

Grass® Tiomos® Face Frame 110-Degree 3/4 in. Overlay Hinges and Plate

Advanced Cabinet Hinge Technology with Effortless 3D Adjustment

The Grass® Tiomos® face frame hinge system represents a new generation of cabinet hardware, combining innovative hinge technology with precise adjustment capabilities. Designed for 3/4 in. overlay applications, this 110-degree hinge provides smooth operation, reliable closing performance, and perfect cabinet door alignment with a simple twist of the hand.

The Tiomos hinge is available with two closing options: standard self-close action and the popular integrated soft-close feature, delivering controlled and quiet cabinet door movement.

FEATURES:

• 110-degree opening angle for versatile cabinet applications
• Designed for face frame cabinets with 3/4 in. overlay doors
• 3-dimensional adjustment with compatible base plate for precise door alignment
• Consistent closing performance regardless of door size, weight, or material with three adjustable settings
• Supports optimal door reveals for doors up to 24 mm thick
• Continuous, self-locking depth adjustment using worm gear technology
• Height adjustment available through worm gear or elongated mounting holes depending on base plate selection
• Side adjustment integrated directly into the hinge arm

Innovative Tiomos Kinematics

The advanced internal mechanism of the Grass Tiomos hinge remains hidden while delivering exceptional performance. Its sophisticated kinematics system allows cabinet doors to open with minimal effort while maintaining precise alignment and smooth movement throughout the hinge cycle.

This high-performance mechanism enables extremely narrow reveals and gives cabinet designers greater flexibility when creating modern cabinetry with clean, consistent lines.

Perfect Alignment with a Twist of the Hand

The Tiomos hinge system makes fine adjustments simple with integrated three-dimensional adjustment capabilities. Depth adjustment (+3/-2 mm) uses a continuous, self-locking worm gear system for precise positioning. Depending on the selected base plate, height adjustment can be achieved through worm gear adjustment (±2 mm) or elongated mounting holes (±2.5 mm). Side adjustment (±2 mm) is conveniently located on the hinge arm for quick and accurate alignment.
