Grass Tiomos Faceframe 110-Deg. 1/2 in. Overlay Hinges

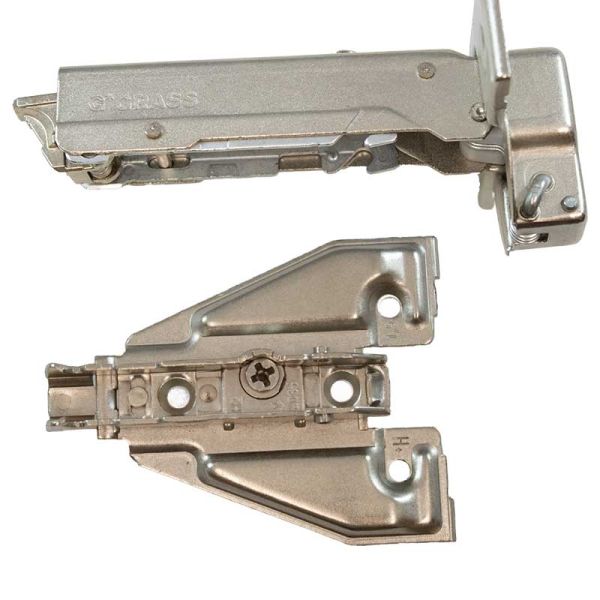

Grass Tiomos Faceframe 110-Deg. 1/2 in. Overlay Hinges and Plate
Grass Tiomos Faceframe 110-Deg. 1/2 in. Overlay Hinges and Plate
Advanced Cabinet Hinge Technology for Perfect Alignment
The Grass Tiomos faceframe 110-degree 1/2 in. overlay hinge combines innovative engineering with effortless adjustment for a superior cabinet installation. Designed with advanced kinematics, Tiomos provides smooth operation, precise alignment, and reliable closing performance with either standard self-close or optional soft-close functionality.
FEATURES:
- 3-dimensional adjustment with compatible base plate for precise door alignment
- Consistent closing action regardless of door size, weight, or material with three adjustable settings
- Designed for optimal door reveals with door thicknesses up to 24 mm
- 110-degree opening angle for versatile cabinet applications
- Available with self-close or soft-close closing action
Innovative Tiomos Kinematics
The sophisticated internal mechanism of the Grass Tiomos hinge delivers smooth, effortless cabinet door movement while remaining concealed within the hinge body. This advanced kinematic system allows doors to open easily, achieve minimal gaps, and provide exceptional alignment possibilities for modern cabinet designs.
Perfect alignment with a twist of the hand.
The Tiomos hinge system makes fine adjustments simple with integrated three-dimensional adjustment capabilities. Depth adjustment (+3/-2 mm) uses a continuous, self-locking worm gear system for precise positioning. Height adjustment can be achieved through worm gear adjustment (±2 mm) or elongated mounting holes (±2.5 mm), depending on the selected base plate. Side adjustment (±2 mm) is built directly into the hinge arm for quick and accurate door positioning.
Specifications:
- Application: Faceframe cabinets
- Overlay: 1/2 in.
- Opening angle: 110 degrees
- Adjustment: 3-dimensional
- Door thickness capability: Up to 24 mm
- Closing options: Self-close or soft-close
| BRAND | Grass |
|---|---|
| Hardware Line | Tiomos Hinges |
| HINGE OPEN ANGLE | 110 DEG |
| Closure Type | Self Close |
| OVERLAY | Full |
| SKU | GA-110-FF |
| SPECS: |
|
| Prop 65 |
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood. |
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
