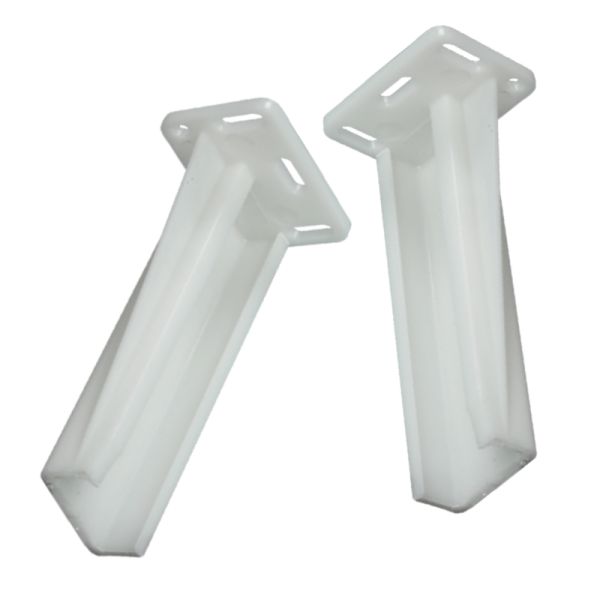

Grass Rear Bracket for 1700 & 1800 Series Slides - 1 Pair

Grass Rear Bracket for 1700 & 1800 Series Slides - 1 Pair

Grass rear mounting brackets provide a secure and reliable way to install Grass 1700 and 1800 Series roller bearing drawer slides in frameless or face frame cabinetry. Designed to slip onto the end of the slide and fasten to the back of the cabinet, these brackets help provide stable slide support and consistent drawer operation.

The double-stop design helps prevent the drawer from accidentally falling out when extended while also allowing the drawer to be locked in the open position. A support roller helps maintain a uniform drawer front height for smooth, consistent installation.

Features and Benefits

• Double-stop design: Helps prevent the drawer from falling out when extended and allows the drawer to be locked in the open position.
• Rear mounting: Provides secure support at the back of the cabinet for Grass 1700 and 1800 Series slides.
• Bottom edge clearance: Helps accommodate proper drawer slide installation.
• 32mm system compatible: Designed for cabinetry using the 32mm system.
• Support roller: Helps maintain a uniform drawer front height.
• Bottom mounting: Works with self-closing drawer slide applications.
• 12.7mm (1/2-in.) installation width: Provides a compact installation footprint.
• Versatile applications: Suitable for both frameless and face frame cabinets.

Technical Information

• For drawer materials from 12.7mm (1/2-in.) up to 19mm (3/4-in.)
• For frameless or face frame cabinetry
• Standard-duty application for Grass 1700 Series slides
• Heavy-duty application for Grass 1800 Series slides
• Rear brackets slip onto the end of Grass 1700 and 1800 Series roller bearing slides
• Brackets fasten to the back of the cabinet for additional slide support
• Recommended mounting hardware: #8 round washer head screws
• Sold as a pair

Specifications

• Plate Width: 1-1/8-in.
• Plate Height: 1-13/16-in.
• Plate Thickness: 9/64-in.
• Extension into Under Mount Slide Length: 3-15/16-in.
• Installation Width: 12.7mm (1/2-in.)

Reliable Support for Grass Drawer Slides

Use these Grass rear brackets to provide dependable rear support for 1700 and 1800 Series roller bearing drawer slides. With their double-stop design, support roller, and compatibility with both frameless and face frame cabinetry, they are a practical solution for cabinetmakers, woodworkers, and cabinet installation projects requiring secure and properly aligned drawer slides.
