22 in. Grass 1700 Partial Extension Drawer Slide, White, Bottom-Mount - 1 Pair
No backorders

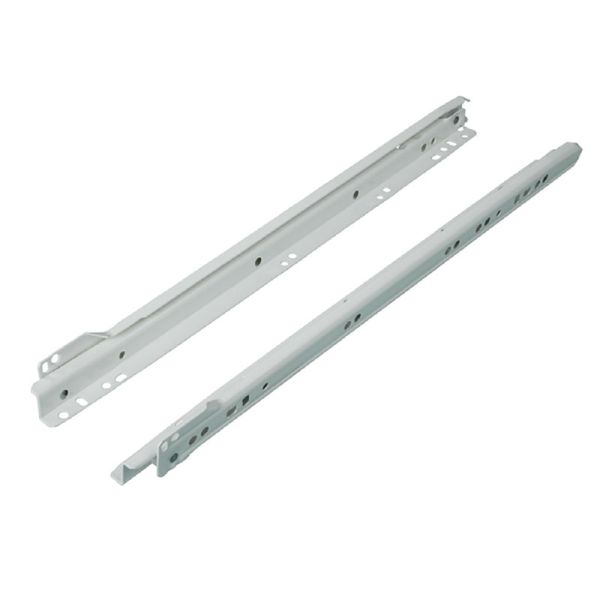

Grass 1700 Partial-Extension, White Epoxy, Bottom-Mount, 100-lb. Roller-Bearing Drawer Slides - 1 Pair
These roller slides operate smoothly, quietly, and close securely
FEATURES:
- Single-extension slide with nylon rollers
- Installation width 12.5 mm (1/2 in.) bottom mounting
- Bottom edge clearance - no chamfering required
- Double Stop - Secure Stop in Open Position
- Dynamic load capacity of 100 lbs.
INSTALLATION:
- Optional rear mount brackets (SKU# AL-P050) for face frame construction.
- Mount with 5mm Euro screws or #6 x 5/8 undercut screws, sold separately
Nominal vs. Actual Length Measurement
The nominal measurement is a comfortable cabinet depth measurement from the front edge of the cabinet wall or face frame to the rear of the cabinet. The actual length of the slide is slightly less. The nominal and actual lengths for the various drawer slides are as follows:
| SKU | Nominal Length | Actual Rail Length |
| AL-P250 | 10 in. | 9-3/4 in. |
| AL-P300 | 12 in. | 11-5-8 in. |
| AL-P350 | 14 in. | 13-5/8 in. |
| AL-P400 | 16 in. | 15-5/8 in. |
| AL-P450 | 18 in. | 17-1/2 in. |
| AL-P500 | 20 in. | 19-1/2 in. |
| AL-P550 | 22 in. | 21-1/2 in. |
| AL-P600 | 24 in. | 23-1/2 in. |
Imported
| BRAND | Grass |
|---|---|
| Hardware Line | Roller Slides |
| Slide Length | 550 mm (21.7 in.) |
| Closure Type | Standard Close |
| WEIGHT RATING | 100 lb |
| MOUNTING TYPE | Under Mount |
| QUANTITY | 1-Pair |
| SKU | AL-P550 |
| Prop 65 |
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood. |
WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
