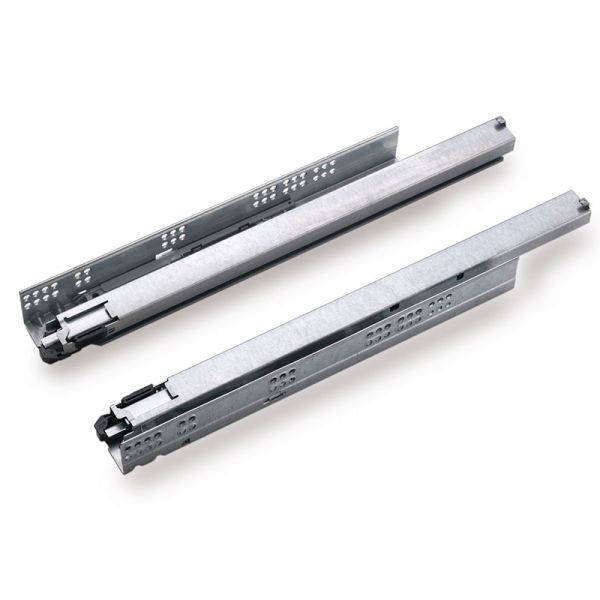

Grass Dynapro 9 in. Full-Extension, Soft-Close, Under Mount Slides - 1-Pair

Grass Dynapro 9 in. Full-Extension, Soft-Close, Under-Mount Slides - 1-Pair

Upgrade your cabinetry with Grass Dynapro Full-Extension Under-Mount Drawer Slides, designed to provide exceptionally smooth, quiet, and reliable drawer operation. The under-mount design creates a clean, streamlined appearance that makes drawers seem to float on air, while the synchronized slide mechanism keeps wide drawers moving smoothly and evenly, even when force is applied from one side.

These 9 in. full-extension drawer slides feature integrated soft-close liquid damping for controlled, quiet drawer closing. They are suitable for both frameless and face-frame cabinet construction, making them a versatile choice for new cabinet installations, custom cabinetry, and drawer upgrades.

Key Features

• Full-extension design: Allows the drawer to open completely, providing easy access to the entire drawer interior.
• Under-mount installation: Slides are concealed beneath the drawer for a clean appearance and an unobstructed view of the drawer hardware.
• Synchronized movement: The integrated synchronization mechanism provides smooth, consistent drawer travel, even when a wide drawer is pushed or pulled from one end.
• Soft-close operation: Liquid damping technology slows the drawer as it closes, helping prevent slamming and providing a smooth, controlled finish.
• 100 lb. load rating: Supports up to 100 lb. (45 kg.) when the drawer is extended, making these slides suitable for a wide range of residential and cabinet applications.
• 3D tool-less adjustment: Provides convenient drawer alignment without requiring specialized tools.
• Height adjustment: Offers 3.5 mm of vertical adjustment for precise drawer positioning.
• Side adjustment: Provides 1.5 mm of lateral adjustment to fine-tune drawer alignment.
• Easy drawer removal: Green release levers allow the drawer to be quickly removed from the slides.
• Easy drawer installation: Simply position the drawer onto the slides and close it. The drawer snaps securely into place.

Cabinet Compatibility

Grass Dynapro slides can be installed in both frameless and face-frame cabinets. When installing these slides in face-frame cabinetry, rear brackets are required and are sold separately.

Drawer Material Requirements

These slides are designed for drawer material ranging from 12.7 mm (1/2 in.) to 16 mm (5/8 in.) in thickness.

Easy Drawer Installation and Removal

The Dynapro system is designed to simplify drawer installation and removal. To remove the drawer, simply squeeze the green release levers and lift the drawer. To reinstall it, place the drawer onto the slides and close the drawer. The drawer automatically engages the slides and snaps securely into position.

Related Parts

The following components are required or recommended for installation and are sold separately:

• 1 Pair of Drawer Locks - Required for securing the drawer to the slides.
• Optional Rear Brackets for Face-Frame Cabinets - Required when installing the slides in face-frame cabinet applications.

Why Choose Grass Dynapro?

Grass Dynapro under-mount slides combine concealed installation, full-extension access, soft-close functionality, and precise tool-less adjustment in a single drawer-slide system. The synchronized mechanism helps deliver smooth performance across the width of the drawer, while the concealed installation keeps the cabinet interior looking clean and professional.

With a 100 lb. load capacity, easy-release drawer mechanism, and compatibility with both frameless and face-frame cabinets, these slides are an excellent choice for high-quality residential and custom cabinetry.
