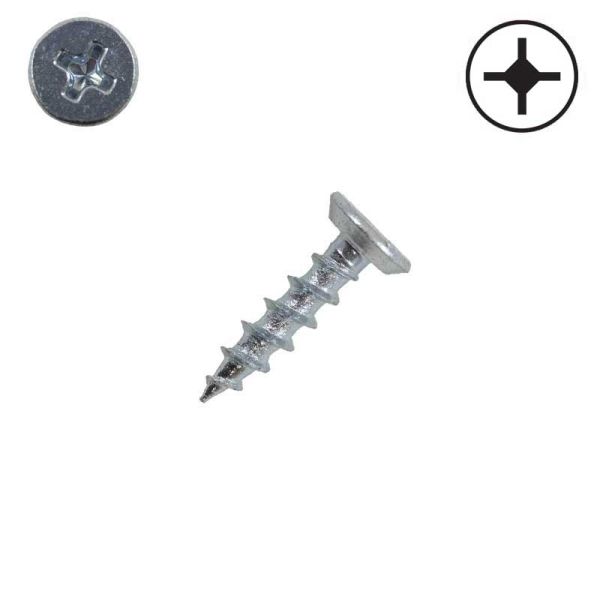

6 x 5/8 in. Undercut Flat Head Mounting, Zinc, Phillips - Qty:16
6 x 5/8 in. Undercut Flat Head Mounting, Zinc, Phillips - Qty:16
Designed for Drawer Slide Mounting!
The undercut head is a variation of the standard flat head. The difference is that the countersink under the head does not extend down to the shank at an angle. The countersink is parallel to the top of the head towards the shank. This provides a small bearing surface.
This is used on the thinner gauge drawer slides so that the screw will seat better in the slide. It can also be used on metal parts with a small bearing surface at the base of the screw hole.
Zinc Plating: The silver appearance of Clear Zinc has been around for many years and remains very popular. It also provides moderate rust protection. Since this is a true electroplating, the zinc coating is part of the surface of the steel and is very durable. Other chemicals can be added to the process, and the coating depth can be controlled.
FEATURES:
- Undercut head allows the head to seat flush in the mounting hole of drawer slides.
- Works with Grass Drawer Slides but can be especially useful when installing slides that tend to use smaller mounting holes.
- Clear Zinc Plated
- #2 Phillips Drive Recess
It is advisable to use a self-centering bit such as our #MS-5107 (7/64 in. drill) just to make sure everything is nicely aligned.
| SIZE (#8, #10 ...) | #6 |
|---|---|
| LENGTH | 5/8 in. |
| MATERIAL | Zinc, Clear |
| COUNTERSINK NIBS | Without Nibs |
| RECESS TYPE | Phillips |
| HEAD | Flat / Undercut |
| POINT TYPE | Standard Wood |
| BRAND | McFeely's |
| RECESS SIZE | #2 |
| QUANTITY | SML (1-50) |
| RoHS Compliant? | No |
| SKU | 0605-FPU-D |
| SPECS: |
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals including Zinc which is known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
