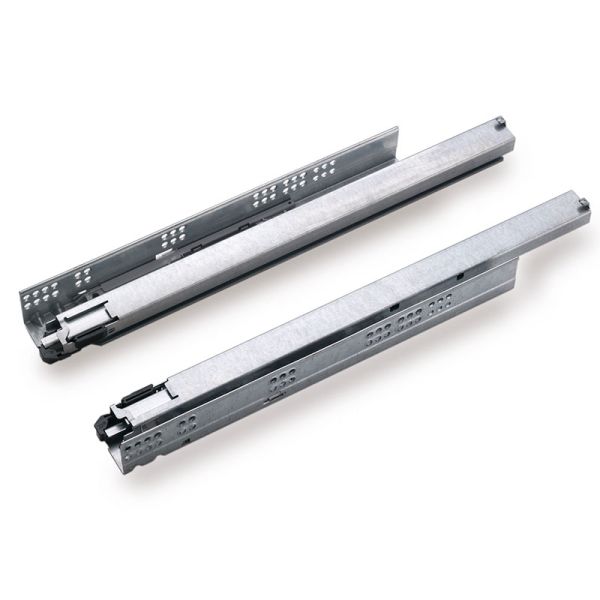

Grass Dynapro 12 in. Full-Ext, Soft-Close, Under Mount Slides - 1-Pair

Full Extension 12-in. Under-Mounted Drawer Slides

FEATURES:

• Can be installed in frameless or face-frame cabinets. (Rear bracket is needed for face-frame cabinets.)
• Full extension drawer opening with a synchronized mechanism which makes motion smooth even if pushed at one end of a wide drawer
• Soft-close liquid damping movement
• Tool-less Three-Dimensional Drawer Adjustment:
• Height adjustment 3.5mm
• Side adjustment 1.5mm

• 100 lb. (45 kg.) load rating when drawer is extended.
• Under-mount slides make drawers appear to glide on air.
• Easy drawer removal and installation

• To remove the drawer, squeeze the green levers and lift.
• To install the drawer, slide the drawer onto the slides and close the drawer. Snap, it's in place.

Related Parts - These must be used with the following parts:

• 1 Pair of Drawer Locks (sold separately)
• Optional Rear Brackets for Face-Frame Cabinets (sold separately)
