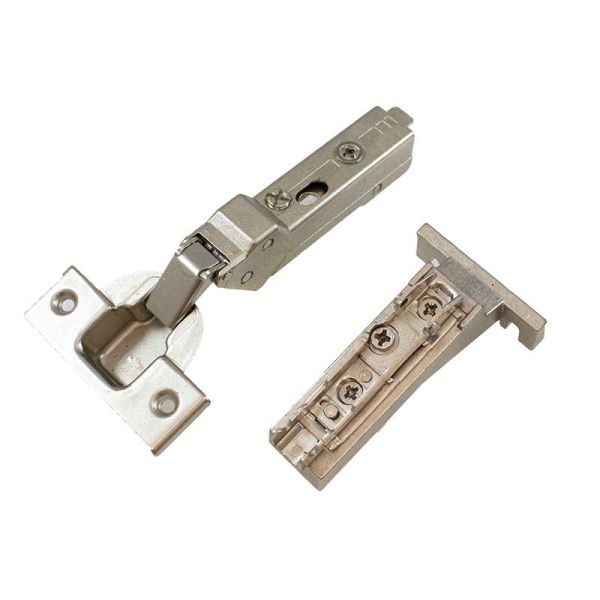

Grass 110 Deg., Face Frame, Soft Close, Inset 2mm Reveal - Single Door Kit

Grass 110° Face Frame, Soft Close, Inset 2mm Reveal - Single Door Kit

Face Frame (Western Style)

• Framed cabinets are the most common type of cabinet construction in the United States.
• They are called framed cabinets because of the 1-1/2 in. lip (face frame) around the front of the cabinet box. The doors are attached to the face frame rather than directly to the cabinet box.

Tiomos: Innovative Hinge Technology

Tiomos is an innovative hinge concept designed to deliver smooth operation and precise alignment with a simple adjustment by hand. Its advanced engineering provides effortless door movement while making it possible to achieve exceptionally small and consistent reveals.

Kinematics Built Into Tiomos Hinges

• The complex inner workings of this high-tech hinge are hidden from view but provide impressive performance. Tiomos kinematics make cabinet doors extremely easy to open while allowing precise alignment with minimal gaps and providing cabinet designers with greater flexibility for door-opening configurations.
• The Tiomos hinge system offers three-dimensional adjustment for precise door alignment.
• Depth adjustment: Up to 2mm, using the worm gear built into the hinge. Adjustment is continuous and self-locking.
• Side adjustment: Up to 2mm through the hinge arm.
• Height adjustment: The plate included in this kit provides ±2mm of height adjustment through an integrated worm gear.

Achieved Overlay Based on Common Cup-Hole Distance

• Door overlay is determined by a combination of three factors: the cup-hole distance, the type of hinge, and the height of the mounting plate.
• This kit is based on a cup-hole distance between 4mm and 6mm (5/32 in. to 15/64 in.). If your cup-hole distance falls outside this range, please contact McFeely's Technical Support for assistance selecting the correct hinge and plate combination.

Door Thickness

• This kit is designed for cabinet doors up to 24mm (approximately 15/16 in.) thick. If your doors are thicker, please contact McFeely's Technical Support for assistance selecting the appropriate hinge components.

Footnotes

For most cabinet doors, a combination of one soft-close hinge and one self-close hinge provides the optimal closing rate. Heavier doors should use two soft-close hinges.

Cup-Hole Distance: The measurement from the edge of the cabinet door to the closest edge of the hinge cup hole.
