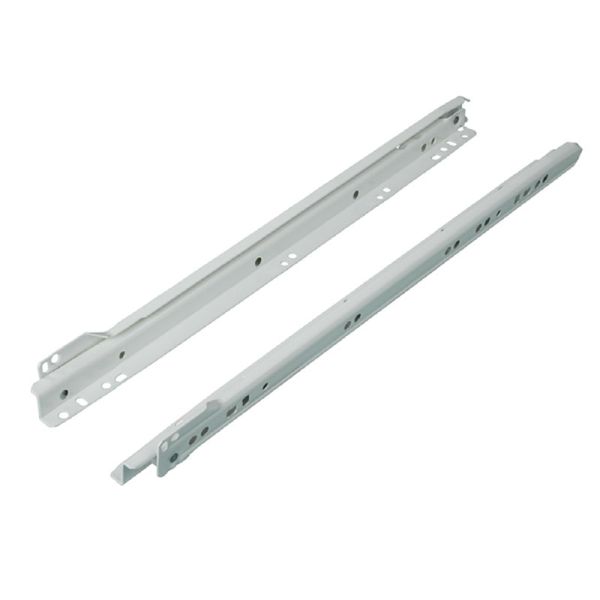

Name: Grass 1702 16 Nominal White Epoxy Bottom-Mount Bearing Slides - 1 Pair
Brand: Grass
Price: 6.73 USD
Availability: InStock

Details

Grass 1702 Partial-Extension, White Epoxy, Bottom-Mount, 100-lb. Roller-Bearing Drawer Slides - 1 Pair

These roller slides operate smoothly, quietly, and close securely

FEATURES:

Single-extension slide with nylon rollers
Installation width 12.5 mm (1/2 in.) bottom mounting
Bottom edge clearance - no chamfering required
Double Stop - Secure Stop in Open Position
Dynamic load capacity of 100 lbs.

INSTALLATION:

Optional rear mount brackets (SKU# AL-P050) for face frame construction.
Mount with 5mm Euro screws or #6 x 5/8 undercut screws, sold separately

Nominal vs. Actual Length Measurement

The nominal measurement is a comfortable cabinet depth measurement from the front edge of the cabinet wall or face frame to the rear of the cabinet. The actual length of the slide is slightly less. The nominal and actual lengths for the various drawer slides are as follows:

SKU	Nominal Length	Actual Rail Length
AL-P250	10 in.	9-3/4 in.
AL-P300	12 in.	11-5-8 in.
AL-P350	14 in.	13-5/8 in.
AL-P400	16 in.	15-5/8 in.
AL-P450	18 in.	17-1/2 in.
AL-P500	20 in.	19-1/2 in.
AL-P550	22 in.	21-1/2 in.
AL-P600	24 in.	23-1/2 in.

Imported

More Information

More Information
BRAND	Grass
Hardware Line	Roller Slides
Slide Length	400 mm (15.7 in.)
Closure Type	Self Close
WEIGHT RATING	100 lb
MOUNTING TYPE	Under Mount
QUANTITY	1-Pair
SKU	AL-P402
Prop 65	WARNING: This product can expose you to chemicals including Nickel which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
