Coyote® Hidden Deck Fastening Kit, for Real Wood and Composite Deck Boards, for Wood Joists - 90 Clips and Screws

Complete Hidden Fastener Kit for Approximately 50 Square Feet^(a)

FEATURES:

• Patent pending aggressive ribs help control lateral movement.
• High-strength polypropylene plastic.
• 304 stainless-steel self-drilling screws.
• Black-coated screw heads to help camouflage the fasteners between the deck boards.
• Screws are installed at a 90-degree angle to the joists for strength and ease of installation.
• Coyote Clips are backed by a 30-year warranty.

CLIP DIMENSIONS:

• Overall Height = 17/32 in.
• Width = 47/64 in.
• Length = 1-31/64 in.
• Board Spacing = 3/16 in. (approx 5 mm)
• Thickness for slot in wood = 11/64 in.

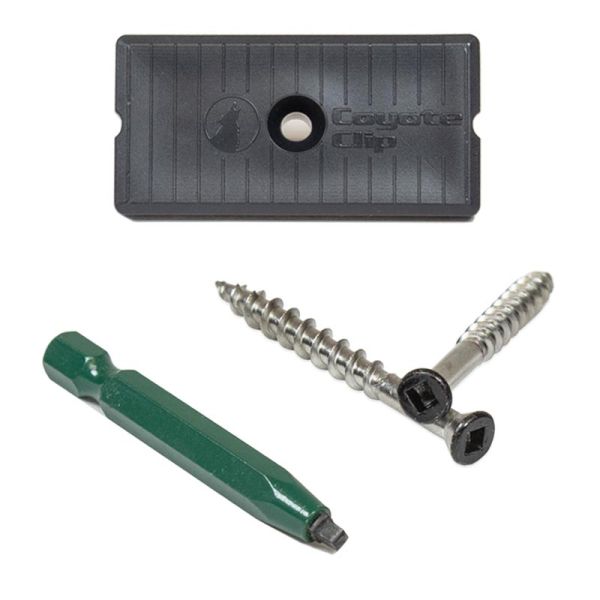

CONTENTS:

• (90) Clips
• (90) #9 x 1-5/8 in. stainless-steel self-drilling wood screws with black-coated heads.
• (1) #1 x 2 in. genuine Robertson® square-drive driver bit

INSTALLATION:

• Simply insert clip into slot of slotted decking and screw down to joist. Be careful not to over-tighten clip.
• For non-slotted boards, use a slot-cutting router bit to cut a tight-fitting slot for the clip. (5/32 in. slot cutting bit recommended) A snug fit will allow the ridges on top of the clip to grab onto the decking board which helps minimize lateral movement.

Imported.

(a) Coverage based on 5-1/2 in. wide (actual measurement) deck boards, 16 in. on center joists.
