Armor High-Pressure Horizontal Toggle Clamp with Horizontal Base Plate

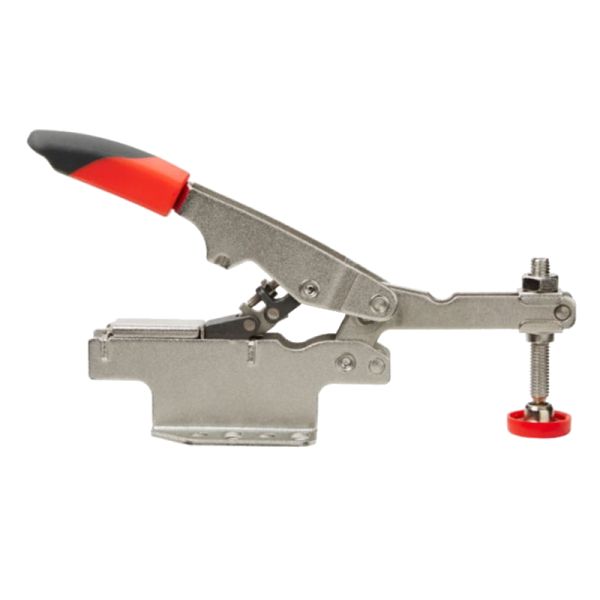

Armor High-Profile High-Pressure Horizontal Toggle Clamp with Horizontal Base Plate

The Armor High-Profile High-Pressure Horizontal Toggle Clamp is designed for fast, reliable workholding across a range of material thicknesses. Its Auto-Adjust Technology automatically compensates for variations in workpiece dimensions while maintaining consistent clamping pressure, helping improve setup efficiency and repeatability in woodworking, fabrication, welding, and other shop applications.

High-Pressure Clamping Performance

With a 2-3/8-in. clamping capacity and a holding capacity of up to 700 lbs., this horizontal toggle clamp provides dependable pressure for securing workpieces during cutting, drilling, routing, assembly, and fabrication. The integrated pressure adjustment screw allows the clamping force to be tailored to the application, with auto-adjustable clamping pressure ranging from 25 to 550 psi.

Fast, Comfortable Operation

The large soft-grip handle provides a comfortable, secure grip for quick clamp engagement and release. Auto-adjusting functionality reduces the need for repeated manual adjustments when workpiece thicknesses vary, making this clamp a practical choice for production environments and repeatable shop setups.

Versatile Horizontal Base Plate

The horizontal base plate features adjustable mounting holes designed to accommodate most standard toggle clamp mounting patterns. The clamp attaches using 1/4-in. or 6 mm screws, providing flexible installation options for jigs, fixtures, workbenches, and custom workholding systems.

Features

• Auto-Adjust Technology automatically compensates for variations in workpiece dimensions.
• Maintains consistent clamping pressure across varying material thicknesses.
• Provides a 2-3/8-in. clamping capacity.
• Auto-adjustable clamping pressure from 25 to 550 psi.
• 700 lb. holding capacity for secure workpiece positioning.
• Enables fast setups and consistent clamping pressure.
• Large soft-grip handle provides improved grip and operating comfort.
• Adjustable mounting holes accommodate most standard toggle clamp mounting patterns.
• Integrated clamping pressure adjustment screw provides a wide range of clamping pressures.
• Mounts with 1/4-in. or 6 mm screws.
• Suitable for woodworking, fabrication, welding, assembly, jigs, and fixtures.

Important Note

Clamping pressure is variable and dependent on the spindle and pressure screw settings.
