#8 x Assorted FA5 #2 Sq Dr 304 & 305 SS Wood Screws

In stock
SKU
0800-FA5-BG
Grouped product items
Product Name Qty
#8 x Assorted FA5 #2 Sq Dr 304 & 305 SS Wood Screws - Qty:600
$123.75
Ultra Stack & Hang Bin - 3 in. x 4-1/8 in. x 5-3/8 in. - Blue
$3.60
  • Buy 6 for $3.06 each and save 15%
Ultra Stack & Hang Bin - 3 in. x 4-1/8 in. x 5-3/8 in. - Green
$3.60
  • Buy 6 for $3.06 each and save 15%
Ultra Stack & Hang Bin - 3 in. x 4-1/8 in. x 5-3/8 in. - Red
$3.60
  • Buy 6 for $3.06 each and save 15%
Ultra Stack & Hang Bin - 3 in. x 4-1/8 in. x 5-3/8 in. - Yellow
$3.60
  • Buy 6 for $3.06 each and save 15%
0800-FA5 Printed Labels
$1.00

#8 Stainless Bugle Head Self-Drilling Wood Screw Kit

You'll be amazed at the difference an auger point makes on a Stainless Steel screw!

Great for use with pressure-treated wood or premium materials like Redwood and Western Red Cedar because they are truly self-drilling. ;

The Type 17 point is not a thread style but can enhance the performance qualities of most thread styles used in the woodworking industry. A slot or notch is cut at the point of the screw, which acts like an auger or drilling tip. The slot carves away the material, thus allowing it to self-drill into most types of wood. It can often eliminate the need for a pre-drilled hole to relieve splitting. The Type 17 point is excellent for hardwoods, softwoods, particleboard, and especially MDF.

Deep Thread: Characterized by a reduced diameter shank resulting in a deep thread profile. A single lead thread, meaning that one revolution advances the screw one pitch. (Pitch equals one divided by the number of threads per inch. For a screw with ten threads per in., one revolution will advance the screw 1/1O in. into the wood.)

The deep thread form provides superior resistance to pull-out.

FEATURES:

  • 305 stainless steel
  • #2 Robertson Square Drive Recess
  • Type-17 Self-Drilling Auger Point
  • Head diameter is 0.344"

Hint: To avoid any potential for splits, be sure to test or pre-drill when you install at the end of a board.

More Information
SIZE (#8, #10 ...)#8
LENGTHAssorted
MATERIALStainless Steel, 304 & 305
COUNTERSINK NIBSWithout Nibs
RECESS TYPESquare
HEADBugle
POINT TYPEStandard Wood
BRANDMcFeely's
RECESS SIZE#2
QUANTITYAssorted
Head Diameter11/32 in.
Unthreaded Shank Diameter7/64 in.
RoHS Compliant?No
SKU0800-FA5-BG
SPECS:

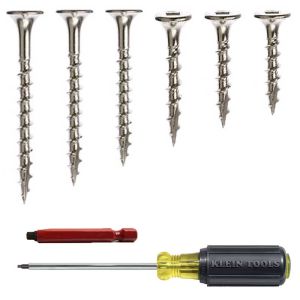

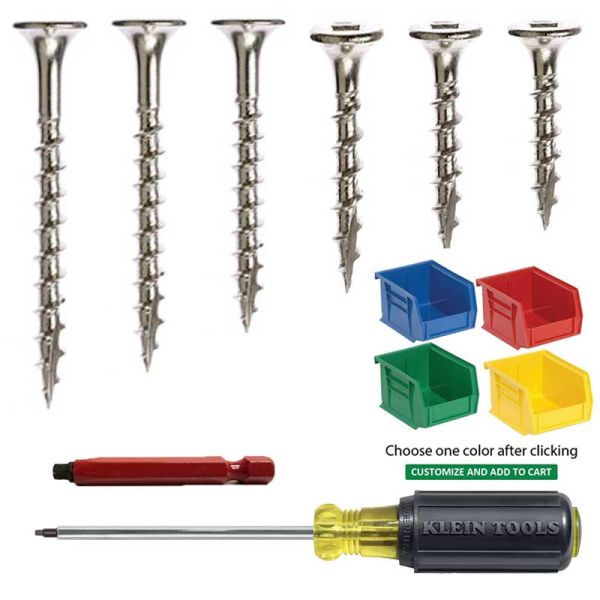

  • (100) - 0811-FA5 - 8 x 1-1/8 in.
  • (100) - 0812-FA5 - 8 x 1-1/4 in.
  • (100) - 0815-FA5 - 8 x 1-5/8 in.
  • (100) - 0820-FA5 - 8 x 2 in.
  • (100) - 0824-FA5 - 8 x 2-1/2 in.
  • (100) - 0830-FA5 - 8 x 3 in.
  • (1) - KLT-0662 Klein #2 x 4 in. Square-Drive Hand Screw Driver
  • (1) - HX-0225 #2 x 2 in. Square-Drive Driver Bit.
  • (6) - 86216 Ultra Stack & Hang Bin - 3 in. x 4-1/8 in. x 5-3/8 in. - You Choose Color
  • (1) - Set of Bin Labels
Prop 65

Prop 65 Warning TriangleWARNING: This product can expose you to chemicals such as copper, nickel, lead or chromium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
