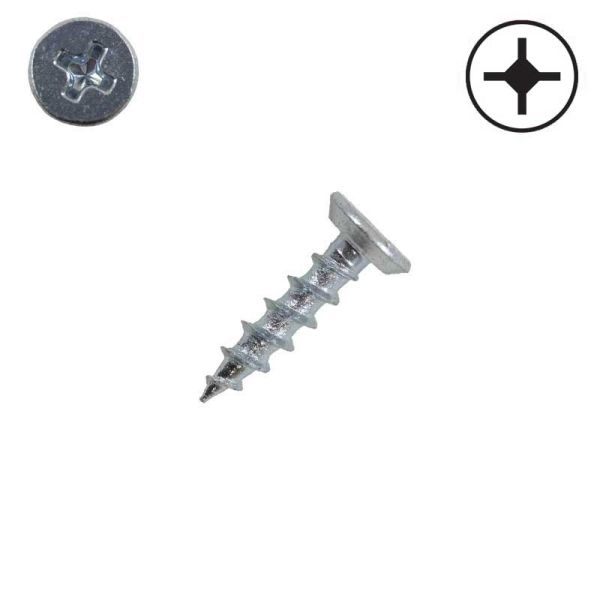

6 x 5/8 in. Undercut Flat Head Mounting, Zinc, Phillips - Qty:15000
6 x 5/8 in. Undercut Flat Head Mounting, Qty:15000
Designed for Drawer Slide Mounting Zinc, Phillips
The undercut head is a variation of the standard flat head. The difference is that the countersink under the head does not extend down to the shank at an angle. The countersink is cut parallel to the top of the head towards the shank. This provides a small bearing surface.
This is used on the thinner gauge drawer slides so that the screw will seat better in the slide. It can also be used on metal parts with a small bearing surface at the base of the screw hole. Be aware that any time you "cut" steel from any part of the thread or head, you produce a weaker screw. By their nature, wood fibers can deflect the screw as it penetrates the wood, causing the head to seat at an angle. If this happens with a weakened head, such as an undercut, the head can be more likely to break off.
Zinc Plating: The silver appearance of Clear Zinc has been around for many years and remains very popular. It also provides moderate rust protection. Since this is true electroplating, the zinc coating is part of the steel's surface and is highly durable. Other chemicals can be added to the process, and the depth of the coating can be controlled.
FEATURES:
- Undercut head allows the head to seat flush in the mounting hole of drawer slides.
- Works with Grass Drawer Slides but can be especially useful when installing slides that tend to use smaller mounting holes.
- Clear Zinc Plated
- #2 Phillips Drive Recess
It is advisable to use a self-centering bit such as our #MS-5107 (7/64" drill) just to make sure everything is nicely aligned.
| SIZE (#8, #10 ...) | #6 |
|---|---|
| LENGTH | 5/8 in. |
| MATERIAL | Zinc, Clear |
| COUNTERSINK NIBS | Without Nibs |
| RECESS TYPE | Phillips |
| HEAD | Flat / Undercut |
| POINT TYPE | Standard Wood |
| BRAND | McFeely's |
| RECESS SIZE | #2 |
| QUANTITY | Keg |
| RoHS Compliant? | No |
| SKU | 0605-FPU-K |
| SPECS: |
|
| Prop 65 |
|
WARNING: This product can expose you to chemicals including Zinc which is known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
