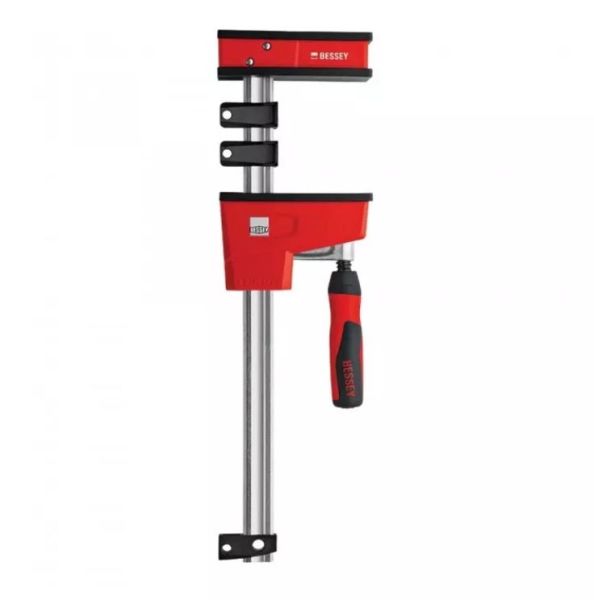

Bessey Parallel Jaw K-Body Revo Bar Clamp - 12 in. Capacity
Bessey Parallel Bar Clamp for High-Pressure Clamping
- Buy 2 for $52.89 each and save 8%
Bessey K-Body REVO Bar Clamp
The Bessey K-Body REVO Parallel Bar Clamp is designed for precise, high-pressure clamping and powerful spreading applications. With large parallel clamping surfaces, a rigid rail, and up to 8,000 N of clamping force, this woodworking clamp provides the strength and control needed for cabinet assembly, furniture building, panel glue-ups, and general workshop projects.
Precise, Parallel Clamping
The K-Body REVO helps keep workpieces accurately aligned while applying even pressure across the entire assembly. The large clamping surfaces are positioned perpendicular to the rail, making it easier to clamp sensitive surfaces, recessed edges, corners, and uniquely shaped workpieces. Integrated workpiece supports help keep materials elevated above the rail to reduce contact during glue-ups.
- Large clamping surfaces provide stable, parallel pressure.
- Workpieces can be clamped or spread behind and alongside the rail.
- Three removable pressure caps help protect finished surfaces.
- Pressure caps resist glue, paint, and grease solvents and can be removed for cleaning or replacement.
- Rail protection pieces help prevent glue from dripping onto the clamp rail.
Powerful and Secure Clamping Force
Built for demanding woodworking applications, the K-Body REVO delivers up to 8,000 N of clamping force. Its metal-reinforced plastic housing provides durability, while the optimized sliding arm with double slide protection helps maintain the selected position and reduces unwanted movement when the clamp is not under pressure.
Ergonomic Handle with Hex Socket
The symmetrical two-component handle provides a comfortable grip and controlled tightening. A built-in steel hex socket allows additional tightening with a hex key or compatible driver when extra clamping force is required, with a maximum torque of 17 Nm.
Converts Easily for Spreading
The K-Body REVO can be converted from a clamp to a spreader without tools, adding versatility for positioning and assembly work. The removable end clip helps keep the clamp parallel to the work surface and can be removed when reversing the sliding arm for spreading applications.
Versatile Workshop Applications
The K-Body REVO system can be expanded with accessories designed for specialized clamping applications. Available accessories include tilting adapters, frame press sets, clamp extensions, and table clamps, giving woodworkers more options for complex assemblies and workholding setups.
- Up to 8,000 N of clamping force for demanding projects.
- 12-in. clamping capacity for panel assembly, cabinetry, furniture, and general woodworking.
- Large parallel clamping surfaces provide accurate, even pressure.
- Metal-reinforced plastic housing provides strength and durability.
- Double slide protection helps maintain the selected clamp position.
- Three removable pressure caps protect workpieces and resist glue, paint, and solvents.
- Workpiece supports help keep materials away from the rail.
- Impact-resistant polyamide rail protection pieces help shield the rail from glue.
| Product Group | Clamps |
|---|---|
| BRAND | BESSEY |
| THROAT (CLAMP REACH) | 3-3/4 in. |
| CLAMP CAPACITY | 12 in. |
| QUANTITY | (1) Each |
| SKU | BT-3712 |
