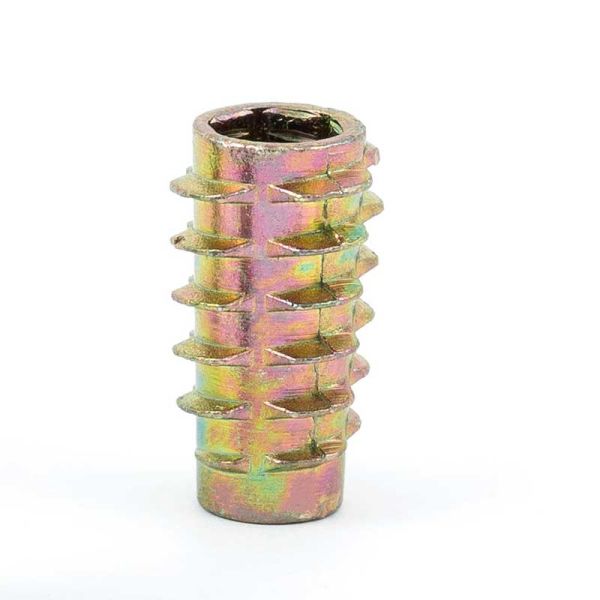

5/16-18 x 20mm Flanged Threaded Insert for Soft Wood - Qty:25
5/16-18 x 20mm Flanged Threaded Insert for Soft Wood - Qty:25
Manmade wood products like Medium Density Fiberboard ( MDF), particle board, and flake board have many uses, but attaching hardware to them can be difficult.
These threaded inserts are designed to cope with the fine-grain structure of these materials. The specially designed interrupted knife threads easily cut their way into these materials, yet offer significant resistance for removal. The flanged version prevents these from being driven too deep beneath the surface.
Generically referred to as Type D (flanged) or Type E (flush) insert nuts, E-Z Hextrade; (Hex Drive) inserts provide sturdy machine threads in soft woods. These hex drives are ideal for any application where assembly or disassembly could lead to thread erosion or stripping.
E-Z Hextrade; inserts feature broad external threads that provide exceptional holding power in materials like pine, composition board, MDF, and plywood. We offer E-Z Hextrade, with internal thread sizes ranging from #8 to 3/8-16, plus M6 and M8. Die-cast from a durable zinc alloy, E-Z Hextrade inserts install quickly with an Allen wrench or optional drive tool.
E-Z LOK hex drive threaded inserts are available with internal thread sizes from #8 to 3/8 and M6 and M8. Most sizes are available in various lengths to meet your unique application's needs.
Made in USA.
Features
- Inexpensive solution for reinforcing threads in soft woods
- Install with Allen wrench or optional drive tool
- Inch or metric threads available
- Flush and flanged designs available
- Multiple lengths available
Applications:
- Ready to Assemble Furniture
- Drawer Pulls
- Display Cases
- Crating
- Materials such as pine, plywood, composition board, and MDF
- ...anywhere a threaded fastener is installed in soft wood
Specifications
- For Use in: Soft Wood
- Style: Hex Drive
- Material: Zinc
- System of Measurement: in.
- Internal Thread: 5/16-18
- Installed Length: 0.79
- Drill Size: 7/16
- Installation Tool P/N: 9100
| BRAND | E-Z LOK |
|---|---|
| MATERIAL | Zinc, Yellow |
| SIZE (#8, #10 ...) | 5/16 - 18 (Bolts) |
| QUANTITY | SML (1-50) |
| PILOT / TAP SIZE | 7/16 in. |
| LENGTH | 20 mm |
| RoHS Compliant? | No |
| SKU | 9145-HD-D |
| Prop 65 |
WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
WARNING: This product can expose you to chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
