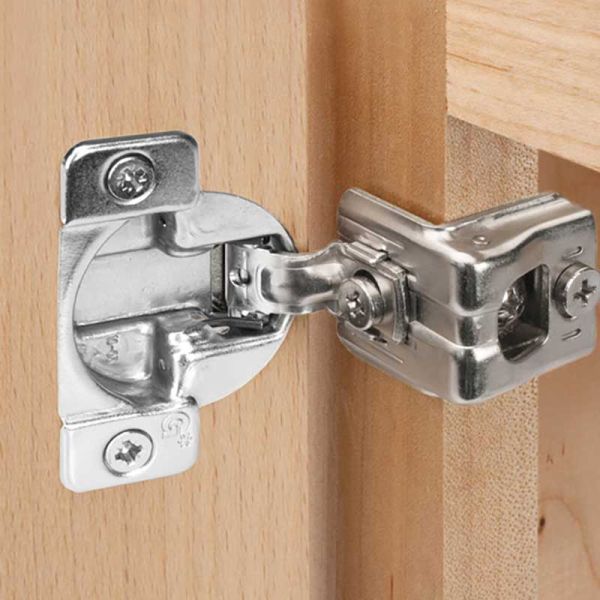

TEC 1-1/4 in. Overlay Face-Frame Hinge, 108 Deg., Self Close , Wrap Attachment

TEC 1-1/4 in. Overlay Face-Frame Hinge, 108°, Self-Close, Wrap Attachment

The TEC 108° Self-Close Face-Frame Hinge is designed for dependable, quiet cabinet door operation and a clean, professional installation. With a 1-1/4 in. overlay and wrap attachment, this hinge is an excellent choice for face-frame cabinetry where consistent closing action and precise door alignment are important.

The TEC hinge system is engineered for durability and smooth operation, making it a trusted solution for face-frame cabinet construction and remodeling projects. TEC Self-Close hinges feature convenient three-dimensional adjustment, allowing you to fine-tune the position of the door for proper alignment and an even appearance across your cabinet installation.

Self-Close Hinge with Precise 3D Adjustment

The TEC 860 hinge family provides a versatile solution for a wide range of face-frame cabinet applications. The hinge incorporates multiple adjustment points to make cabinet door installation and alignment easier. Cam adjustments provide precise control over the door position, while the mounting screw allows for height adjustment.

• 1-1/4 in. overlay for common face-frame cabinet applications
• 108° opening angle provides convenient access to cabinet interiors
• Self-closing action helps bring the cabinet door smoothly into the closed position
• Wrap attachment provides secure mounting to the cabinet face frame
• Three-dimensional adjustment allows precise cabinet door alignment
• Cam side adjustment provides convenient lateral positioning
• Cam depth adjustment helps fine-tune the door position relative to the cabinet
• Height adjustment is made at the mounting screw
• Front locating tabs help position the hinge accurately on the face frame
• All-steel construction with nickel-finish components for strength and durability
• Suitable for doors with profiled edges
• Compatible with current GRASS insertion machinery
• Made in the USA

35 mm Cabinet Hinge Cup

The TEC hinge uses a standard 35 mm hinge cup mounting hole with a 10 mm drilling depth. The cup is positioned 2.5 mm from the edge of the cabinet door for proper hinge installation. The hinge design provides a secure connection while maintaining the clean, concealed appearance expected from European-style cabinet hardware.

Designed for Face-Frame Cabinetry

This TEC self-closing hinge is specifically designed for face-frame cabinets, providing a practical combination of reliable closing action, durable construction, and adjustable positioning. The wrap attachment configuration makes it well suited for cabinetmakers, furniture builders, and woodworking professionals looking for a dependable concealed hinge solution.

Mounting Screws Sold Separately

Mounting screws are not included with this hinge. The following screws are recommended for installation:

• Hinge cup to door: #6 x 5/8 in. flat head screw
• Base plate to face frame: #10 x 3/4 in. pan head screw

Durable TEC Cabinet Hardware

Built in the USA, TEC hinges combine durable steel construction with precise adjustment features for dependable long-term cabinet performance. Whether used in new cabinet construction or as a replacement hinge, the TEC 108° Self-Close Face-Frame Hinge provides smooth, consistent door operation and the adjustability needed to achieve a professional cabinet installation.
