Super Neodymium Magnet Discs .315 in. Dia. x .118 in. Thk. (10 pcs.)

Magnet Discs .315 inch Dia. x .118 in. Thick (10 pcs.)

Super Neodymium Magnet Discs .472 in. Dia. x .118 in. Thk. (6 pcs.)

$10.34
Availability: In stock
SKU
MM-7046

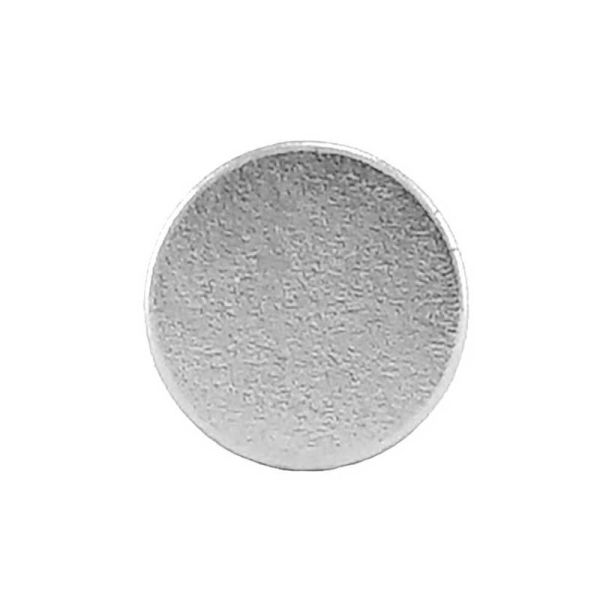

Magnet Discs .472 in. Dia. x .118 in. Thick magnets. (6 pcs.)

Super Neodymium Magnet Discs - All magnets are not created equal.

Neodymium magnets are a permanent type of Rare Earth Magnet, made from neodymium, iron, boron and other transition elements. These are the strongest permanent magnets on the market today. Neodymium magnets have many uses, from a variety of industrial applications to an unlimited number of personal projects. They can be used in the manufacturing of motors, alternators, and actuators and also great for crafts, school experiments and DIY jobs. Use for practically any light, medium or heavy-duty project, where super strong pull force is required.

  • Glue to the back of projects that require extreme strength in a small size
  • Ideal for home, school, office and shop

Extremely strong for their size, Neodymium (Nd-Fe-B) rare earth magnets are composed of neodymium, iron, boron and a few transition metals.

Manufacturing - In general, the elements are melted together and milled into a powder that is dry-pressed to shape in the presence of a magnetic field. The material is then sintered, ground to dimension, magnetized and tested.

They are called rare earth magnets because the elements of neodymium are classified as such in the lanthanides section of the Periodic Table of the Elements.

Tolerances - For as-pressed material, tolerance on the thickness (direction of magnetization) is #43;/#45; .005 in.. Other dimensions are #43;/#45; 2.5#37; or #43;/#45; .005 in., whichever is greater.

According to International Magnetics Association (IMA) standards, visual imperfections such as hair-line cracks, porosity and minor chips are commonly found in sintered magnets. A chipped edge is considered acceptable if no more than 10#37; of the surface is missing. Cracks are acceptable as long as they do not extend across more than 50 percent of the pole's surface.

Magnetizing and Handling - Neodymium magnets are very brittle and very strong magnetically. Therefore, it is crucial to handle these magnets with extreme care to avoid personal injury and damage to the magnets. Fingers can be severely pinched between attracting magnets. Magnets can chip if allowed, jump at an attracting object. It is highly recommended that rare-earth magnetic assemblies be magnetized after assembly. These magnets are NOT for children.

More Information
BRANDMcFeely's
LENGTH.472 (approx 15/32)
QUANTITY6-Pack
SKUMM-7046
SPECS:<
  • Finish/Plating: Nickel Plated
  • Grade: 35
  • Magnet Material: Neodymium
  • Magnet Shape: Disc
  • Magnetization Orientation: Through Thickness
  • Number of Items in Sell Pack: 6
  • Product Color: Silver
  • Product Diameter (In.): 0.472
  • Product Shape: Round
  • Product Thickness (In.): 0.118
  • Pull Rating: 4.59
  • Weight (lbs.): 0.05

All magnets have general safety rules and safety specifications based on their unique properties. In order to ensure your personal safety and extend the lifetime of your magnets, it is important to understand the recommended handling, storage, and safety guidelines.

All Permanent Magnets (Except for Flexible Magnet Material)

  • Magnets are naturally brittle and are prone to chipping and shattering, so gloves and eye protection are sometimes required, depending on magnet strength.
  • Magnets should not be placed in close proximity to media devices and older electronics, such as floppy disks or video tapes.
  • Modern cell phones are safe near small magnets. In fact, rare earth magnets are used in the phone’s speaker. Many cell phone cases and mounts also contain magnets.
  • Magnets can interfere with navigational equipment such as compasses, which is why magnets are shipped by air only when absolutely necessary and must be packaged so their magnetism does not permeate the box.
  • Keep magnets away from children and pets. If swallowed, call 9-1-1 immediately as magnets can damage organs and result in surgery or even death when more than one neodymium magnet is ingested. They are so strong that they attract across intestines and can bind them closed.
  • Individuals with pacemakers or other magnetic medical devices should avoid contact with magnets, especially near the medical device, such as magnetic name badges.
  • Stored magnets should be properly labeled so that they are easily identifiable. If a magnetic assembly can be turned on and off, it should be stored in the off position.
  • When separating strong magnets, it is safer and easier to slide, rather than pull them apart. A table edge or external separating aide (used with the assistance of another person) can be helpful in the separation process of stronger magnets. Many of our magnets are sold with keepers or spacers that should be used in storage and transit of magnets.

Neodymium Magnets

  • Rare earth magnets are commonly nickel-plated to prevent corrosion. Individuals with nickel allergies should wear gloves when working with nickel-plated magnets.
  • Neodymium magnet powder and dust is highly flammable and can spontaneously combust. Do not attempt to drill, sand, or machine-alter neodymium magnets.
  • Rare earth magnets can become demagnetized in extremely high temperatures. Magnets should never be exposed to temperatures higher than their maximum operating temperatures.
  • Rare earth magnets are extremely strong and can result in injury if handled improperly. They should be clearly labeled when placed for storage. Proper handling of rare earth magnets larger than ½ inch in size includes the following:
    Slide apart and slide together carefully while holding firmly in separate hands. Allowing magnets to jump together can result in magnet breakage and/or severely pinched fingers. Keep out of reach of children. Do not drop magnets onto hard surfaces as they are extremely brittle and may chip or shatter
  • Name badge backings often use neodymium magnets. Individuals with pacemakers or other magnetic medical devices should keep magnets away from the devices and should not use magnetic name badges.
  • Rare earth magnets should be kept out of reach of children and pets. Swallowing magnets can result in organ damage and possibly death.
