Square + Phillips + Torx Impact Bit Set
Square + Phillips + Torx Impact Bit Set

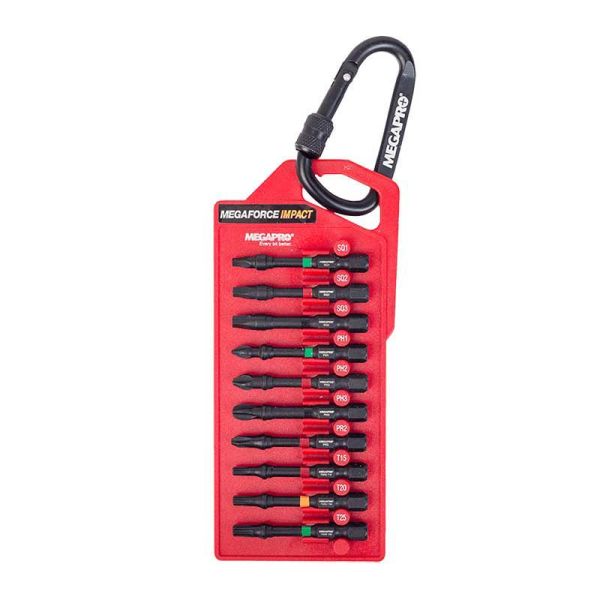

The Square + Phillips + Torx Impact Bit set contains a clip pack with 10 machined impact bits of modified S2 steel, for long-lasting durability.
A black oxide finish helps protect against corrosion. The impact bits are color-coded for easy size identification.
Square Drive Recess: This recess was invented by P.L. Robertson (founder of Robertson, Inc.) in 1908 and was the first production fastener with an internal recess.
The Phillips Recess remains very popular in the woodworking industry. It provides a much more positive fit than slotted screws and requires about 12 foot-pounds of pressure to keep the driver engaged in the recess. There is more cam out (driver bit slippage) that occurs when compared to square drive screws, which offer a more positive bit engagement. The cam-out was a part of the design feature to prevent overtightening of the fastener. This was described as a feature in the refinement Patent of 1949.
Torx is a patented brand name for a six-pointed drive pattern developed in 1967 by Camcar Textronic. The Generic name is Start Drive is commonly used instead of the trademarked Torx to identify the six-lobe drive system. Other companies have branded their own particular six-lobbed drive system, like Spax has a T-Star and a T-Star Plus. By design, the six-lobe drive resists Cam-Out better than Phillips (Phillips is designed to Cam-Out to prevent over-torquing) and slotted head screws.
Sizes are numbered and all start with a "T-" and range from 1 to 100. Starting with T-1 to T-10, they step up by increments of 1. From T-10 to T-45, they step up in increments of 5, and from T-50 to T100, they step up in increments of 10.
| Product Group | Driver Bits |
|---|---|
| BRAND | Megapro |
| RECESS OR HEX-NUT SIZE | Assorted |
| REG / IMPACT | Impact Duty |
| DRIVE TYPE | Hex |
| DETENT | Ball |
| QUANTITY | (1) Each |
| SKU | MEG-BIT-10A |
| SPECS: |
|
| Prop 65 |
|
WARNING: While working in a hazardous areas where you can be exposed to flying objects, fragments, and particles, primary protective devices such as safety glasses or goggles with side shields must be worn. Secondary protective devices such as a face shield is required in conjunction with primary protective devices during severe exposure to impact hazards.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
