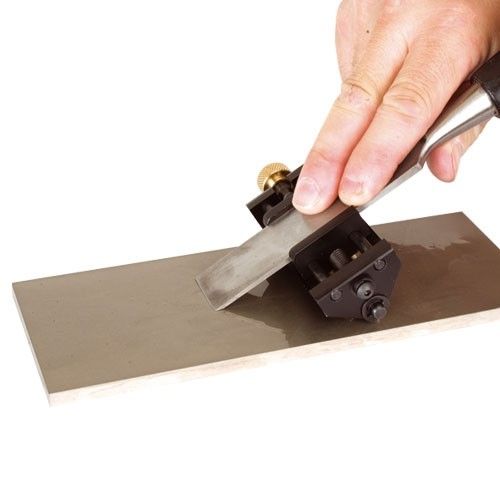

Sharpening Diamond Honing Guide Set

Ensure correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone

• Precision roller with alloy body which self–centre clamps bevel edge chisels from 3/8 in. (10mm) to 1–1/4 in. (32mm) and plane irons up to 2–3/8 in. (60.3mm) wide. Maximum thickness 0.275 in. (7mm).
• The setting device is preset for 25 degree, 30 degree, 35 degree and 40 degree angles.
• Positive location for roller and blade.
• Adjustable stop for setting blade angle.
• Use with 63mm (2 1/2 in.) wide x 178mm (7 in.) long bench stones or workshop stones.
• Not for use with Firmer chisels or short blade (Butt) chisels.

Specifications

• Chisel blade width min. – 3/8 in.
• Chisel blade width max. – 1–1/4 in.
• Chisel blade thickness max. – 0.275 in. Chisel blade length min.3 in. at 25 deg
• Plane blade width max. – 2–3/8 in.
• Angle – 25 deg, 30 deg, 35 deg & 40 deg
