SaddleSquare3D

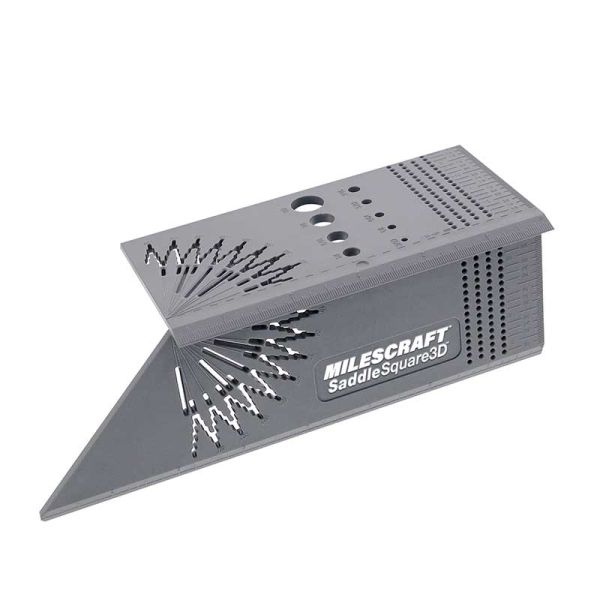

Milescraft SaddleSquare3D

The Milescraft SaddleSquare3D is a compact, pocket-sized woodworking layout tool designed to make marking, measuring, and transferring lines across multiple surfaces quick and accurate. Combining the functions of a traditional saddle square, miter square, measuring rule, angle guide, and bit sizing gauge, this versatile carpenter's tool is a valuable addition to any workshop.

Simply pair the SaddleSquare3D with a pencil or 0.9 mm mechanical pencil to create precise layout marks without complicated measurements or additional tools. Its unique three-dimensional design helps transfer lines from one face of a board to adjacent faces, making it especially useful for woodworking, carpentry, cabinetry, and general shop layout tasks.

Versatile 3D Saddle Square for Woodworking

The SaddleSquare3D functions as both a 90-degree saddle square and a 45-degree miter saddle, allowing you to quickly transfer layout lines around the edges and faces of a workpiece. Its compact design fits easily in a pocket, tool bag, or apron, so it can be kept close at hand whenever precise marking is needed.

Accurate Measuring and Scribing

Four integrated rulers provide precise 1/32-inch graduations for detailed measuring and layout work. Two horizontal and two vertical scales make it easy to reference measurements from different orientations. Dedicated scribing guides accept a 0.9 mm mechanical pencil and physically guide the pencil to help create evenly spaced lines without relying on freehand marking.

Built-In Angle Marking Guide

The patent-pending angle marking guide provides a physical reference for accurately marking angles from 2 to 83 degrees. Instead of estimating or manually positioning a pencil, the guide helps keep the pencil aligned to the desired angle for repeatable layout results.

Built-In Bit Sizing Gauge

A convenient bit sizing gauge is incorporated into the tool to help identify the size of router bits, drill bits, and other bits. This makes the SaddleSquare3D a practical shop accessory for keeping common layout and measurement tasks in one compact tool.

SaddleSquare3D Features

• 3D Layout Tool: Transfer accurate marks across adjacent faces of boards and workpieces.
• 90-Degree Saddle Square: Quickly mark and transfer square layout lines around a workpiece.
• 45-Degree Miter Saddle: Create and transfer 45-degree miter layout marks with ease.
• Four Measuring Rules: Includes two horizontal and two vertical scales with 1/32-inch graduations.
• Precision Scribing Guide: Use a 0.9 mm mechanical pencil to create accurately spaced layout lines.
• Angle Marking Guide: Physically guides the pencil for marking angles from 2 to 83 degrees.
• Bit Sizing Gauge: Helps identify bit sizes conveniently while working in the shop.
• Pocket-Sized Design: Compact and easy to keep in a pocket, tool apron, or toolbox.
• Versatile Carpenter's Tool: Combines multiple common layout functions into one convenient woodworking accessory.

Ideal for Woodworking and Carpentry Layout

Whether you're building furniture, installing cabinetry, making signs, assembling projects, or completing general carpentry work, the Milescraft SaddleSquare3D helps simplify everyday layout tasks. Its combination of measuring scales, scribing guides, square and miter functions, angle marking, and bit sizing makes it a versatile addition to any woodworker's collection of measuring and marking tools.
