Mini-X Miller Dowels - Red Oak - Qty:100

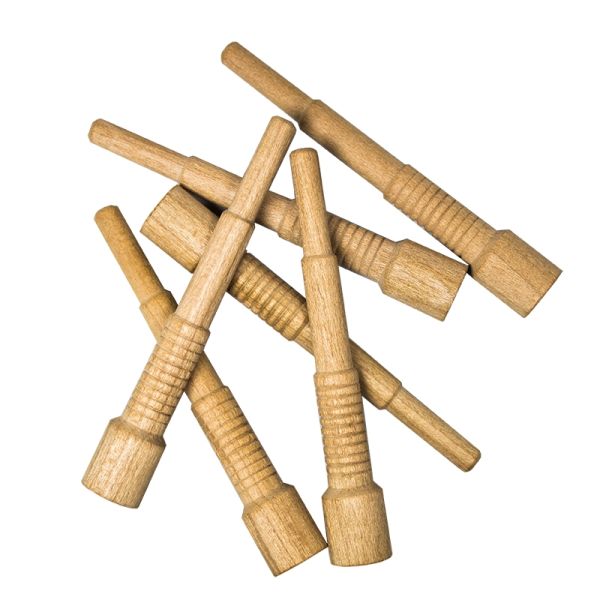

Miller Mini-X Dowels - 100 Red Oak Dowels

Build strong, attractive wood joints with Miller Mini-X Red Oak Dowels. Designed for woodworkers who want a simple alternative to traditional joinery methods, these Red Oak dowels provide an effective way to join solid wood and laminated wood components while maintaining the natural appearance of the project.

The Mini-X Miller Dowel system is ideal for a wide range of woodworking applications involving thicker wood materials. These dowels can be used for projects such as shelving, tables, chairs, cabinetry, decking, stair risers and treads, and millwork. The Miller Dowel system offers a straightforward alternative to blind dowels, biscuits, and traditional mortise and tenon joinery.

Natural Red Oak Wood Construction

Made from Red Oak hardwood, these Miller Mini-X dowels are designed to complement wood projects while providing a natural-looking joinery solution. Once installed, the exposed portion can be trimmed or sanded flush with the surrounding surface for a clean, finished appearance.

Simple Miller Dowel Joinery

The Miller Dowel system uses a specially stepped pilot hole and a matching dowel to create a secure wood joint. The ribbed sections of the dowel provide space for glue while helping the dowel center itself as it is driven into the joint. This simple installation process makes Miller Dowels suitable for both professional woodworkers and DIY woodworking projects.

How to Use Miller Mini-X Dowels

1. Align and securely position the wood pieces that will be joined.
2. Use the appropriate Miller Dowel TruFit™ drill bit to create the stepped pilot hole.
3. Apply a small amount of wood glue to the ribbed sections of the dowel.
4. Insert the dowel into the drilled hole, allowing it to extend into the second board.
5. Tap the dowel fully into place. The dowel is designed to self-center as it enters the second piece of wood.
6. Trim or sand the raised portion of the dowel flush with the surrounding surface.

Versatile Woodworking Applications

Miller Mini-X Red Oak Dowels can be used for a variety of woodworking and carpentry projects, including:

• Shelving and storage projects
• Tables and furniture
• Chairs and other woodworking projects
• Cabinetry and millwork
• Decking applications
• Stair risers and treads
• Solid wood and laminated wood assemblies

Product Features

• Mini-X Miller Dowel size
• Red Oak hardwood construction
• Quantity: 100 dowels
• Designed for thick solid or laminated wood materials
• Provides an alternative to traditional blind dowels, biscuits, and mortise and tenon joinery
• Ribbed dowel design helps hold glue and supports secure installation
• Can be trimmed or sanded for a clean finished surface
• Suitable for professional and hobby woodworking projects

Kit Contents

• (100) Red Oak Mini-X Miller Dowels

Miller Dowel Size Guide

• Mini-X: For joining wood approximately 1/2 in. thick, with a maximum material thickness of 3/4 in.
• 1X: For attaching wood pieces up to 1-1/8 in. thick.
• 2X: For joining wood pieces up to 1-5/8 in. thick.

Note: A compatible Miller Dowel TruFit™ drill bit is required for installation and is sold separately unless included in a specific kit.

Miller Dowel products provide woodworkers with a practical and attractive approach to strong wood joinery. With natural hardwood construction and a straightforward installation process, Miller Mini-X Red Oak Dowels are a versatile choice for furniture, cabinetry, shelving, millwork, and other woodworking projects.
